Description

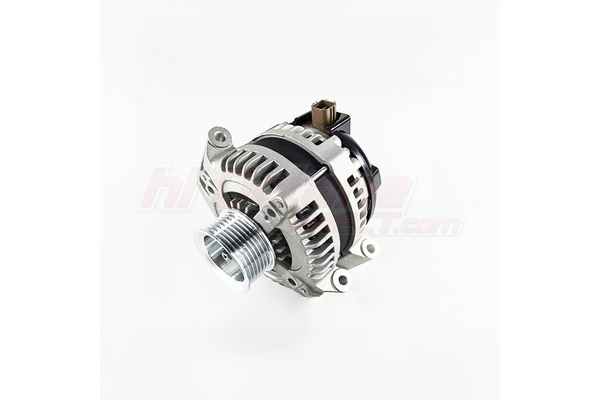

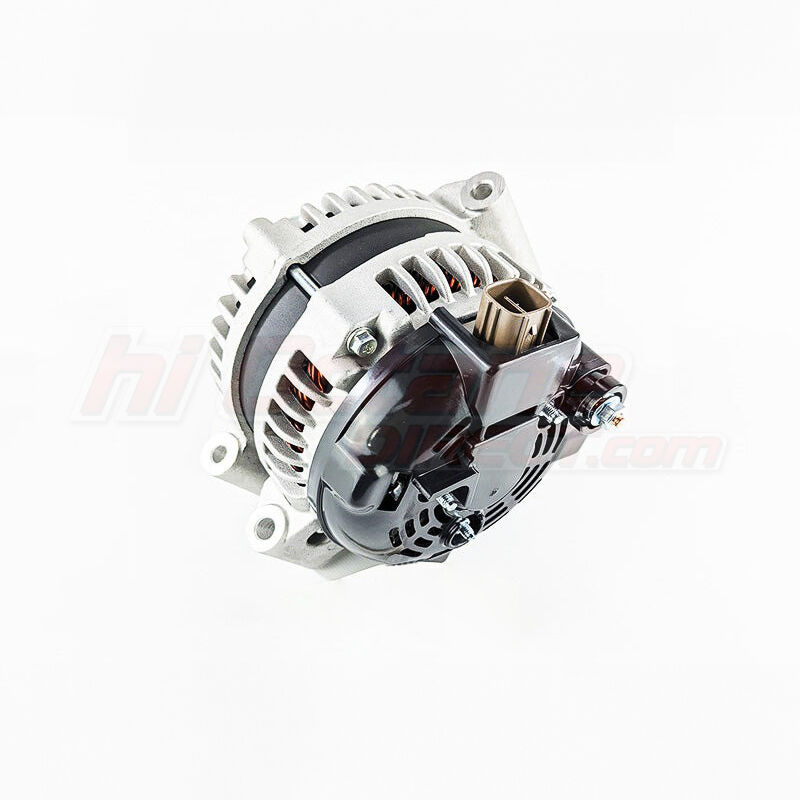

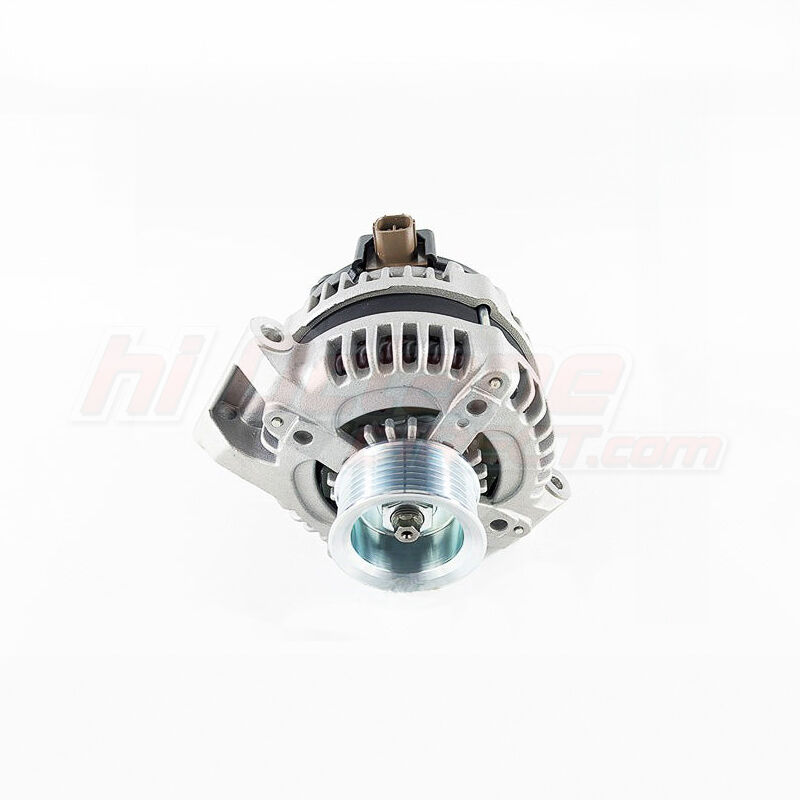

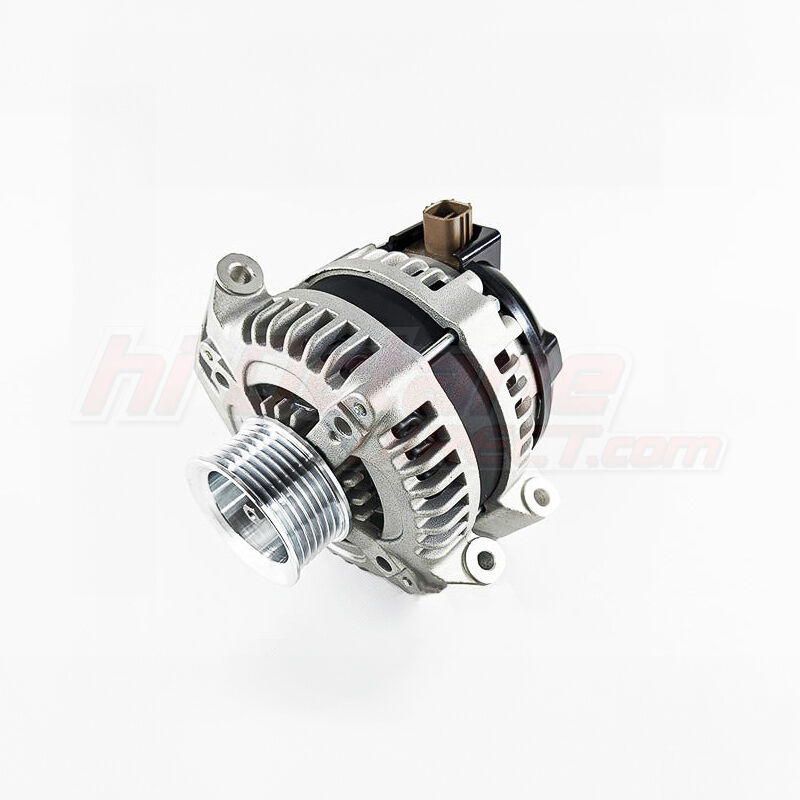

The Hi Octane Racing High Output Alternator is designed for Honda K20 and K24 engines, with the K20 requiring a spacer for proper fitment. Here are the key features and test results:
Features:
Rated at 180+ Amps
Direct fitment for Honda K20 and K24 engines
Test Results:
Maximum Alternator Output: 184 Amps
Maximum Output Power: 2348 Watts
Voltage Set Point: 14.24 Volts
Leakage Current: 0.47 mAmps
Ripple Current: 7 Amps
Alternator Turn On Speed: 1131 RPM
Regulator Activation Speed: 849 RPM
LRC Delay: 10.5 Sec.
Feedback (Full Load): 12.72 Volts
Feedback (Minimum Load): 14.17 Volts
It's highly recommended to upgrade the wiring to 12.1mm O.D. for optimal performance.
