• G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
• 58mm TURBOCHARGER COMPRESSOR WHEEL
• 76% MAXIMUM COMPRESSOR EFFICIENCY
• MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
• NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
• STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
• OIL RESTRICTOR AND WATER FITTINGS INCLUDED
• FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
• TURBOCHARGER ASSEMBLIES ARE CALIBRATED WITH A 0.5 BAR ACTUATOR
• STANDARD ROTATION SUPERCORE 880693-5002S

WARNING: Maximum allowable turbocharger speed is 150krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately.

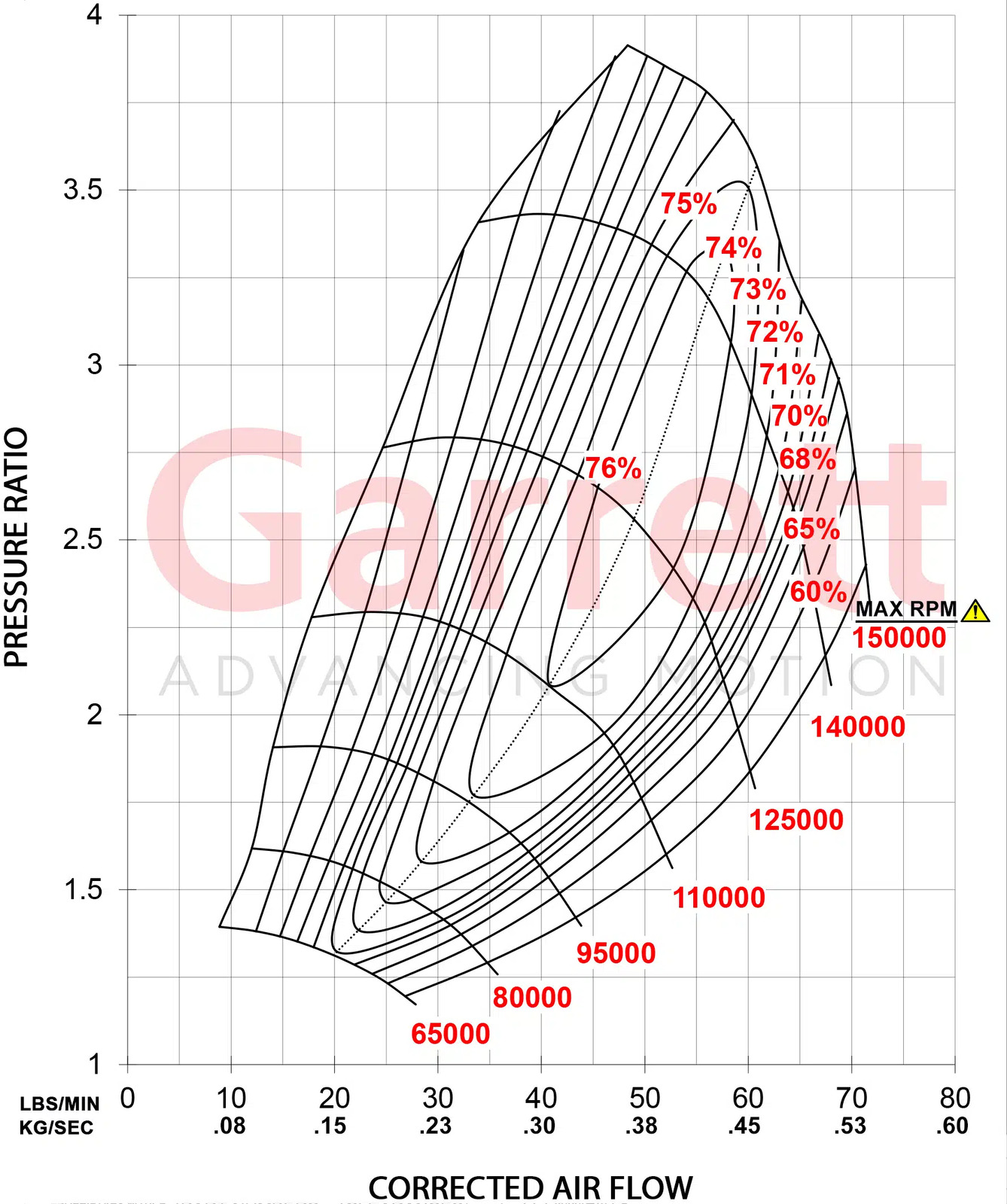

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
