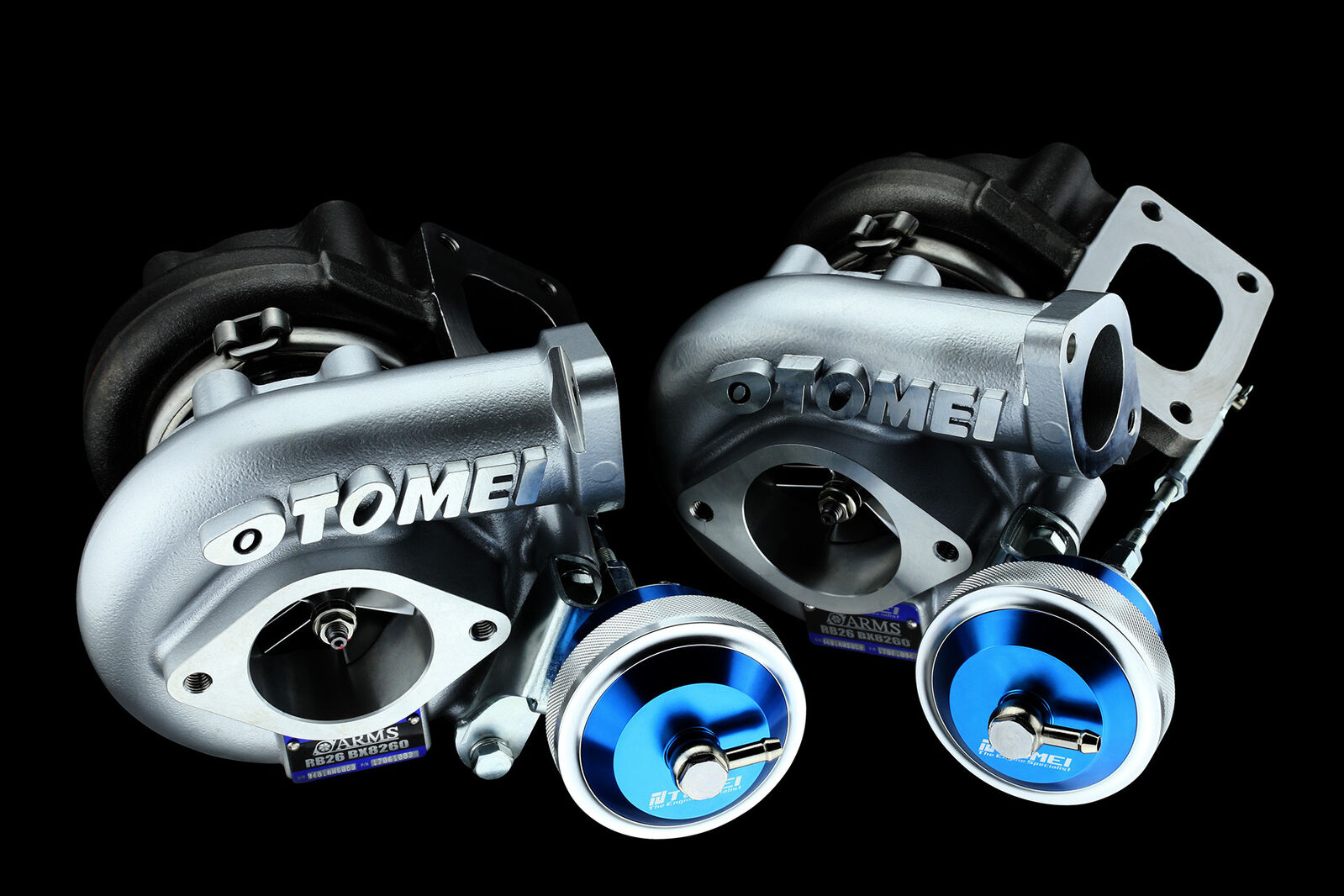

Tomei Ball Bearing Turbocharger ARMS BX8260 RB26DETT R32/R33/R34
SKU: TB403A-NS05B
Price:
$6,999.00
More infoMake 4 interest-free payments of $1,749.75 fortnightly and receive your order now.
Description

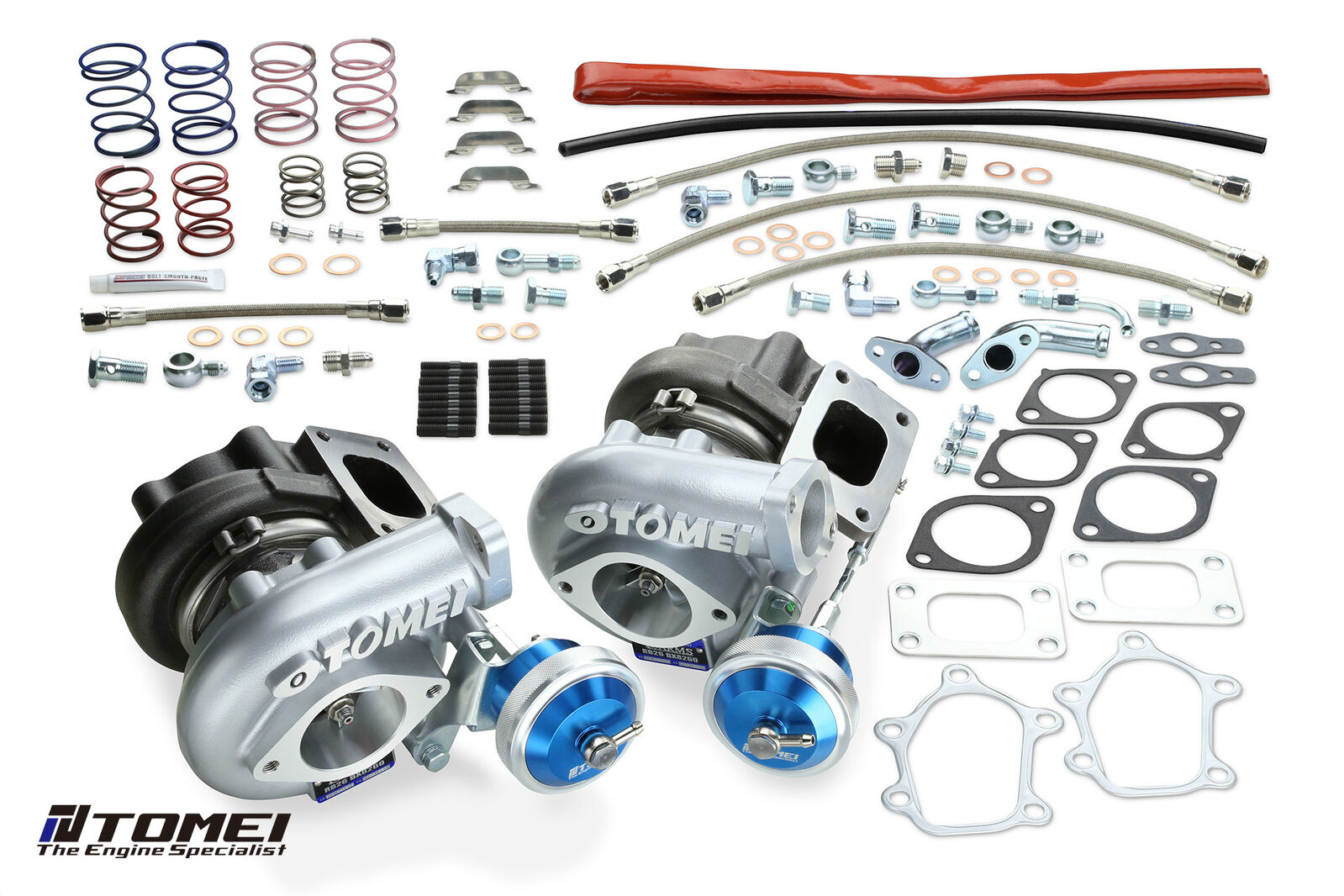

| B/B TURBOCHARGER KIT ARMS BX8260 RB26DETT | |
| TARGET HP (HP) | 650 |
| BEARING TYPE | BALL BEARING |
| INITIAL BOOST SETTING (kgf/cm2) | 1.0 |
| COMPRESSOR WHEEL | |
| ⒶIND(mm) | 52.6 |
| ⒷEXD(mm) | 68.0 |
| TRIM | 60 |
| BLADES | 6/6 |
| MATERIAL | A2618 |
| PRODUCTION | CNC BILLET |
| TURBINE WHEEL | |
| ⒸEXD(mm) | 58.8 |
| ⒹIND(mm) | 67.0 |
| TRIM | 77 |
| BLADES | 9 |
| MATERIAL | K418 |
| PRODUCTION | CAST |
| COMPRESSOR HOUSING | |
| IND(mm) | 53.5 |
| EXD(mm) | 38.75 |
| A/R | 0.74 |
| TURBINE HOUSING | |
| IND(mm) | T25 |
| EXD(mm) | RB26DETT |
| A/R | 0.73 |

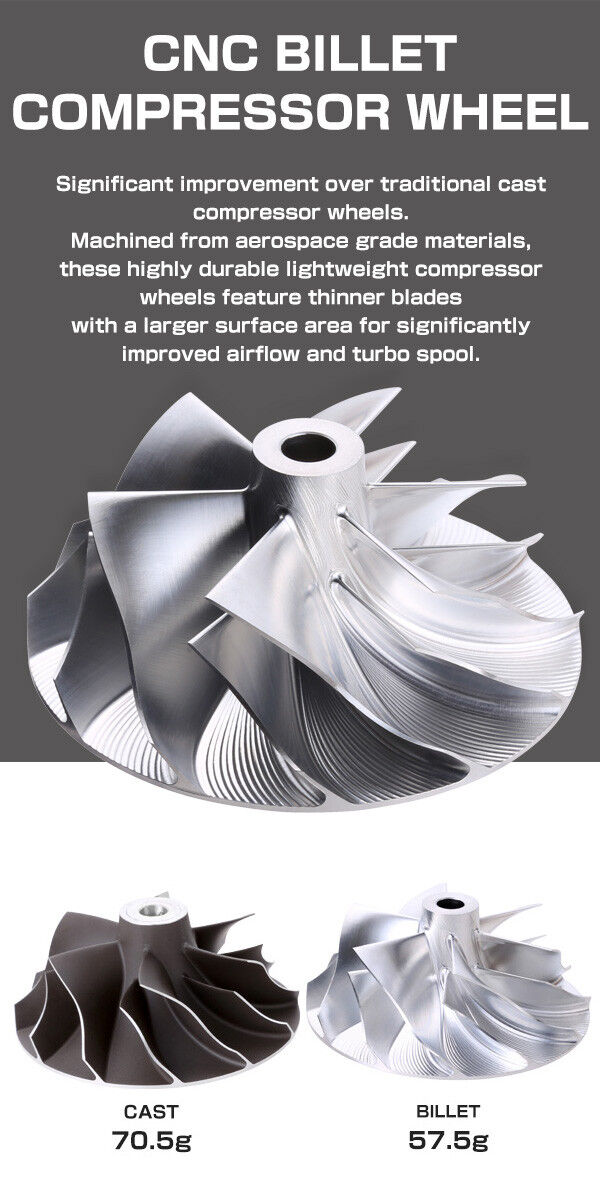

CNC BILLET COMPRESSOR WHEEL
Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface area for significantly improved airflow and turbo spool.

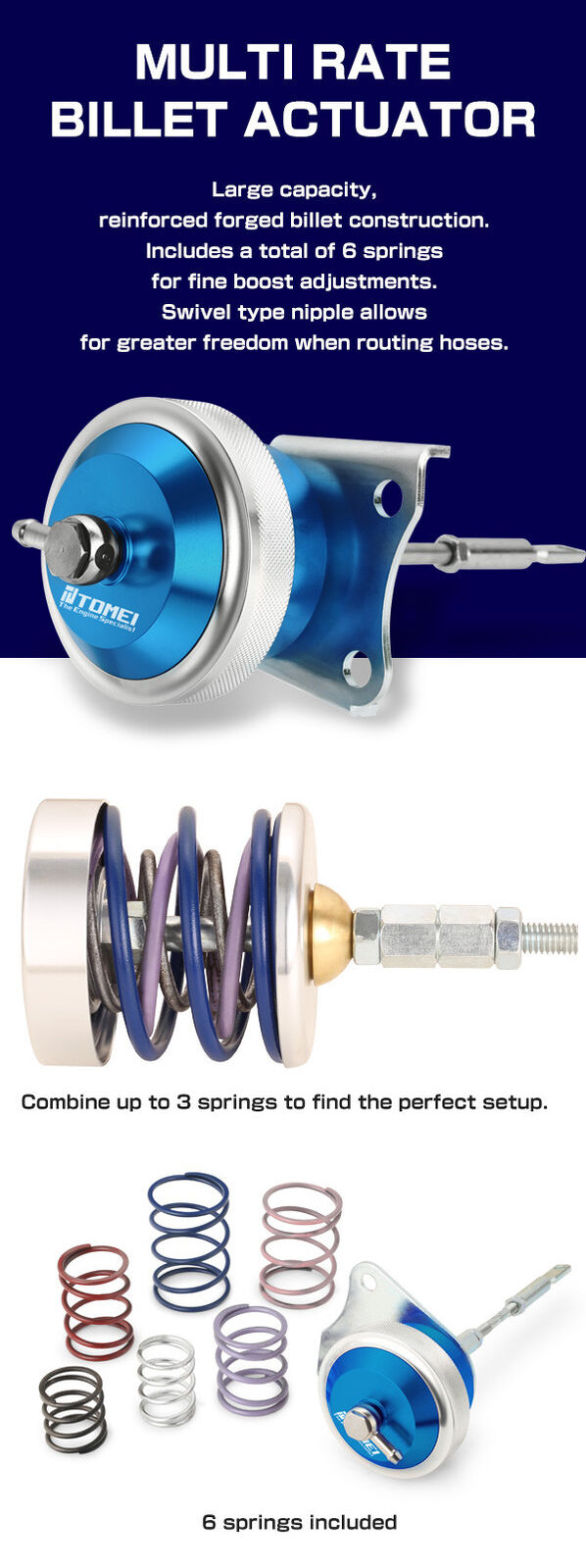

MULTI RATE BILLET ACTUATOR
Large capacity, reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.
Combine up to 3 springs to find the perfect setup.
6 springs included
TURBO CHARGER SIZE GUIDE
| CODE | 76 | 77 | 79 | 82 |
| IND(mm) | 56.0 | 56.0 | 61.0 | 67.0 |
| EXD(mm) | 47.5 | 49.1 | 54.0 | 58.5 |
| TRIM | 72 | 77 | 79 | 77 |
 |
|
 |
 |
| CODE | 55 | 60 | 65 | 67 | 70 | 80 |
| IND(mm) | 50.3 | 52.6 | 54.8 | 56.3 | 59.0 | 61.4 |
| EXD(mm) | 68.0 | 68.0 | 76.2 | 75.0 | 76.2 | 82.0 |
| TRIM | 56.3 | 75.0 | 56.0 | 56.0 | 60.0 | 56.0 |
 |
|
 |
|
|
 |
| Engine | Size Code | H.P.Range | BX | MX | NOTE |
| Ball Bearing | Journal Bearing | ||||
| RB26DETT | 7655 | 580 | TB403A-NS05A | TB401A-NS05A | |
| 8260 | 650 | TB403A-NS05B | TB401A-NS05B | ||
| RB25DET | 8265 | 450 | TB403A-NS06A | TB401A-NS06A | |
| SR20DET | 7960 | 400 | TB403A-NS08A | TB401A-NS08A | |
| 8270 | 450 | TB403A-NS08B | TB401A-NS08B | ||
| KA24DE | 7960 | 400 | TB403A-NS16C | TB401A-NS16C | *1 |
| 8270 | 450 | TB403A-NS16D | TB401A-NS16D | *1 | |
| 1JZ-GTE | 8280 | 450 | TB403A-TY04A | TB401A-TY04A | |
| EJ SINGLE SCROLL | 7760 | 380 | TB403A-SB01A | TB401A-SB01A | |
| 7960 | 400 | TB403A-SB01B | TB401A-SB01B | ||
| 8265 | 450 | TB403A-SB01C | TB401A-SB01C | ||
| 7960F | 400 | TB403A-SB01D | TB401A-SB01D | *2 | |
| 4G63 EVO4-9 | 7960 | 400 | TB403A-MT01A | TB401A-MT01A | |
| 7967 | 430 | TB403A-MT01B | TB401A-MT01B | ||
| 4B11 | 8280 | 450 | TB403A-MT02A | TB401A-MT02A | |
| G4KF(HYUNDAI) | 7960 | 400 | TB403A-HY01A | TB401A-HY01A |
