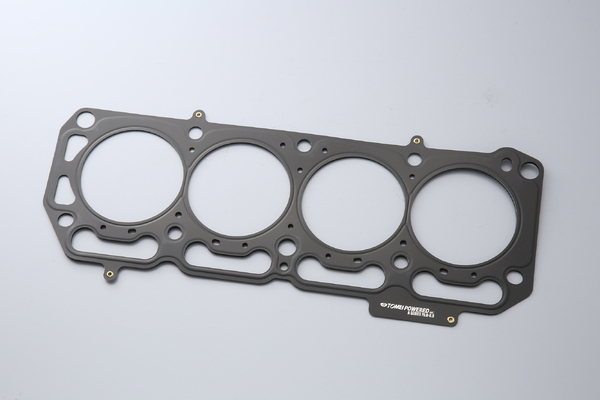

Tomei Head Gasket - Nissan A Series A12/A14/A15 [Bore Size: 79] [Thickness: 0.8mm]

SKU: 36162_36163
Tomei Head Gasket - Nissan A Series A12/A14/A15 [Bore Size: 79] [Thickness: 0.8mm]

Product Options

Bore Size
Thickness
Price:
WAS AU$415.00
NOW AU$373.50
Sale Ends in
00:00 am, 31 May 2024

More info.

Make 4 interest-free payments of AU$93.38 fortnightly and receive your order now.



Calculate Shipping

Description

FEATURE / SPEC

■ GASKET STRUCTURE ACCORDING TO APPLICATION


The head gasket for TOMEI Type A has 2 types of bead structures are available to choose.


Opposing Bead Type
Keeps the surface pressure evenly around the bores, water lines and oil lines.
Designed to withstand and long-last on modified Nissan-A engines typically run at high RPM and high load conditions.
Opposing Bead Stopper Type
In addition to the Opposing Bead structure, this type is dual-beaded with the additional stopper beads around the bores.
The highest surface pressure provides the securest sealing at the water / oil lines and most importantly at the bores.
The best choice ever for racing Nissan-A under extreme conditions.




■ Improved Bead Line



Bead Line securely divides water lines and oil lines.




■ Compatible with various oil / water hole designs



・ Oil Inlet Port Layout
Early A12 engines have an independent oil inlet port while late A12 engines supply oil through a head bolt hole.
TOMEI Head gasket has one large, united oil port which allows it to fit both early and late models, as well as for those early models with heads swapped to the late model’s.

・ Water Line Layout
The all new oval-shaped water line ports allow it to fit A12, as well as A14 and A15.

・ Oil Return Port Layout
Each A12, A14 and A15 has a little different layout in their oil return ports.
TOMEI design has enlarged ports which allow it to fit A12, as well as A14 and A15.



■ Heat Conductivity & The Strength of Stainless Steel


Flex and strong stainless steel SUS301.
Stainless steel was chosen to be the material of choice to make the Metal Gaskets with because of the heat conductivity efficiency of the stainless steel material to evenly distribute the heat and aid with cooling. This will greatly improve reliability and reduce the chances of problems.
The natural high tensile qualities of Stainless Steel greatly helps with increasing the joint ridged of the cylinder head with the cylinder block. This helps minimize the engine from warping when under severe stress loads that performance engines go through when running high power applications. The result is improved durability and added power gains.



■ ABOUT MARKING

All our metal head gaskets are laser marked with Models, Bores, Thickness, and TOMEI POWERED INC. company name.
Since there are similar/counterfeit goods on market, please make sure logos on Gasket.
