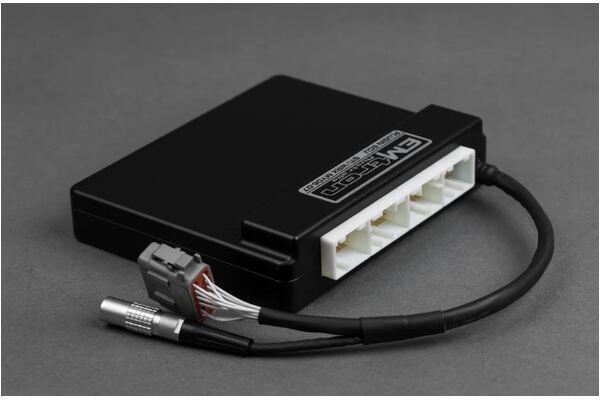

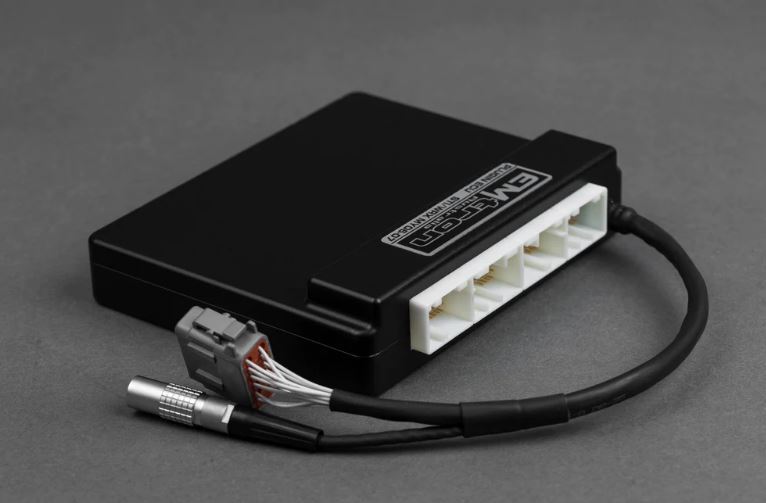

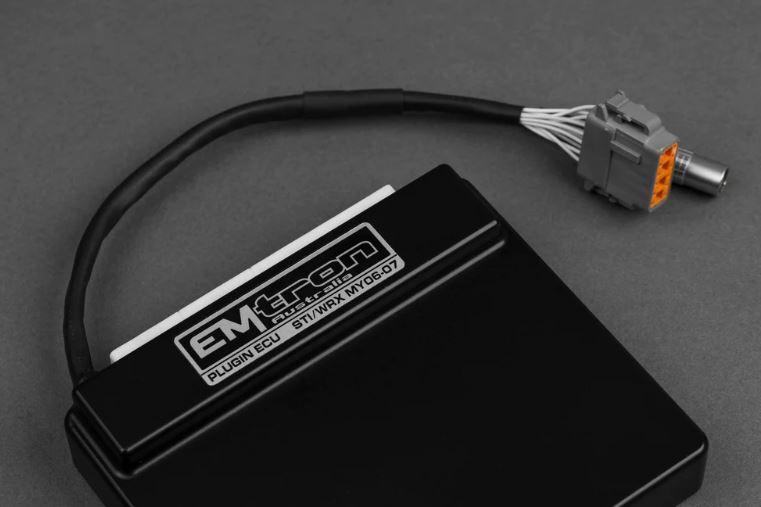

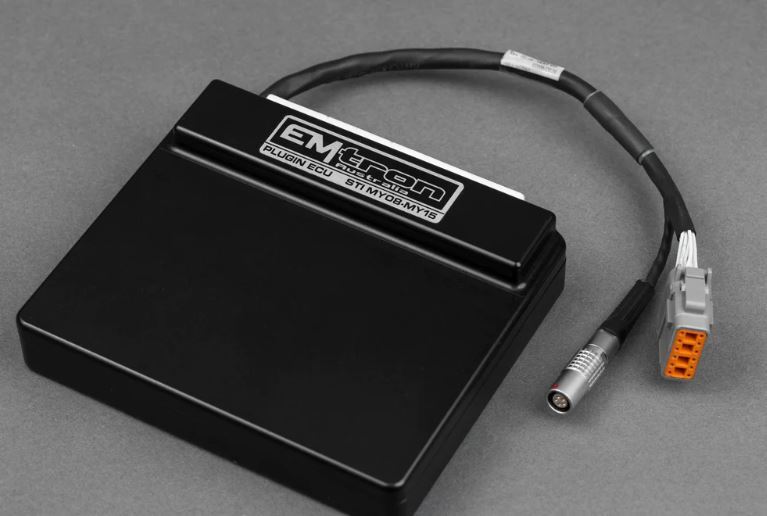

Emtron Subaru Plug-in ECU

• 6061 Aluminium CNC Bilet Enclosure
• Dual 100MHz Processors
• 32MB ECU Logging (Over 600 Channels)
• Ethernet High Speed Communications
• 3 Axis Accelerometer
• 2 x CAN Buses (OEM and Expansion Connector)
• 1 x Individual Cylinder Knock Control Input (Bosch)
• Upgradable to run the Emtron Fuel model through installation of a Flex Meter, Fuel Temperature and Fuel Pressure Sensor
• Compatible with all Emtron Motorsport features
• Not suitable for USDM and LHD vehicles.

Emtron offers a motorsport plug-in solution for the JDM and ADM, RHD Subaru WRX STI from 2006-19. The reason the plug-in is limited to this market is due to its unique pin assignment for vehicles delivered in these regions.

If you are looking for an engine management solution outside of these , you will need to select either a SL or KV ECU and pair it with the Subaru STI Application build. This will allow you to have CAN integration into the chassis so factory features continue to operate (A/C, display cluster etc). You will then need to either repin the factory harness to the Emtron ECU or have a patch harness made. We recommend www.Boomslang.com for your patch harness needs.

Emtron is a manufacturer of motorsport ECUs and as such intended for use in off-road motorsport environments.
