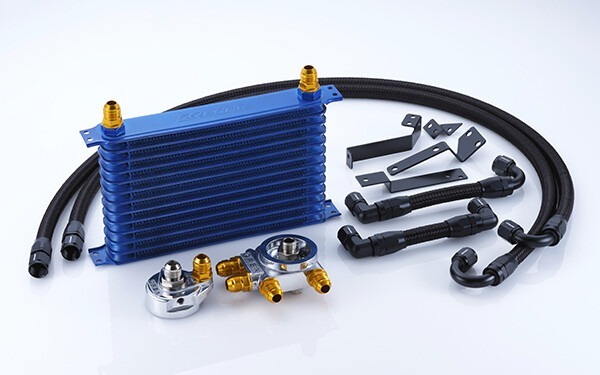

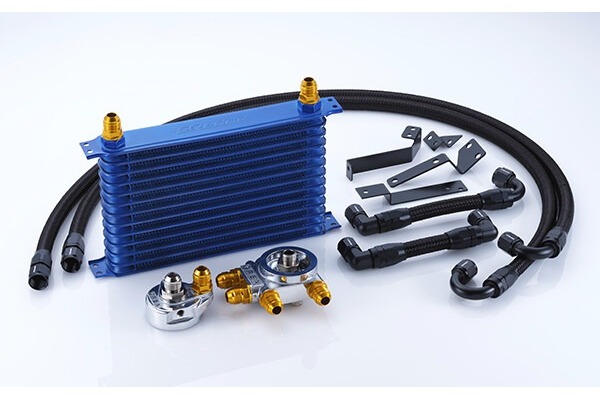

Oil cooler kit, movable, 13 stages, for S14/S15

Product Features

• This is an ideal oil cooler that uses a large-capacity core with offset fins inside the core tube, which increases heat dissipation and successfully reduces pressure loss.
• This kit is designed to be installed on cars that do not have clearance around the oil filter.
• Moving the element makes oil filter replacement easier and improves maintenance.

Product Specifications

• Core type: NS1610G
• Thermostat: Built-in block
• Core installation position: In front of radiator
• Element installation location: Inside the right fender
• Center bolt size: M20 x P1.5
• Engines with a center bolt M20 x P1.5  require an oil filter with a center bolt size of 3/4-16 UNF (GReddy oil filters OX-01, OX-02, OX-03 are suitable).

Compatible models: NISSAN Silvia S15

• Vehicle model: S14/S15
• Engine type: SR20DET
• Year: 93.10-02.08
• CODE: 12024408

• Washer tank, fender protector, under cover need to be modified
• AT vehicle not confirmed
• Engines with a center bolt M20 x P1.5  require an oil filter with a center bolt size of 3/4-16 UNF (GReddy oil filters OX-01, OX-02, OX-03 are suitable).
