GReddy Trust Turbo Kit TD06 S L2 20RX -8.0㎠   - Nissan Silvia / 200SX S14 S15 SR20DET

Kit Contents:
GReddy Trust Turbo TD06 S L2 20RX -8.0㎠
GReddy Cast Exhaust Turbo Manifold
GReddy Wastegate Type R-08 (0.8-1.2kg/cm2)
GReddy AIRINX Air Cleaner (Dry Filter)

Compatible with genuine Catalytic Converter.

Turbine kit wastegate type for S14/S15

A turbine kit that has an independent bypass valve called a "wastegate" installed in the exhaust manifold, separate from the turbocharger itself.

This is a high-grade product aimed at serious users who have a clearly defined purpose for their engine and the target engine characteristics they want, and who are looking for ideal engine tuning.

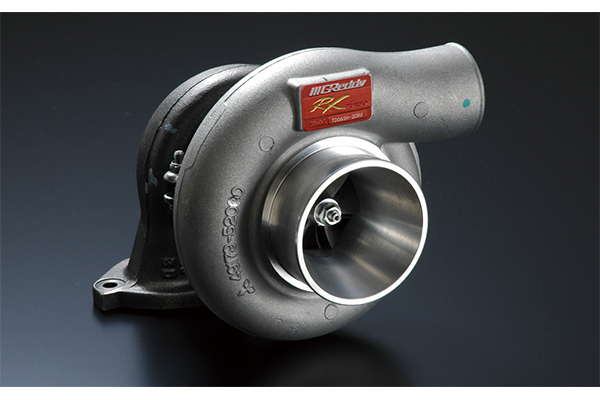

GReddy TD06S L2-20RX 8㎠ / 10㎠

Adopting a newly designed aluminum billet impeller, performance exceeds that of the TD06SH 20G

Product Features

●The compressor wheel uses a newly designed aluminum billet impeller with excellent high-temperature strength.
●The aluminum billet impeller is machined from a high-strength aluminum alloy, making it possible to make it thinner. As a result, the blade area is increased, air volume is increased, and at the same time, the compressor wheel is made lighter, improving response.
●Compared to the previously used G-type impeller, output in the mid-to-high speed range has increased by 9 to 12%, while response in the low to medium speed range remains the same.
*Installation of a blow-off valve at the same time is recommended.

GReddy CAST Exhaust Manifold SR20DET TD05/TD06/T67 Single

Product Features

●This is an exhaust manifold for mounting TD05H 18G, TD06S 20G/20RX, TD06S L2 20G/20RX, TD06SH 20G/20RX, T67 25G, and TD06SH 25G on Silvia/180SX (vehicles equipped with SR20DET). ●
By changing from SUS304 pipes to SCS13 lost wax casting, durability has been greatly improved.

specification

・SCS13 material (equivalent to 304 material) lost wax casting
・Body thickness 4mm, port inner diameter approx. 38.5φ (equivalent to conventional product)
・Waistgate line stainless steel pipe 304 material
・Pipe thickness 2mm, 50.8φ
・Weight approx. 5.2kg (conventional product weight approx. 4.4kg)
*Gaskets and other accessories are not included.

Product Configuration

・Exhaust manifold body
・Waistgate stay
・Waistgate stay bolt

Compatible models: Nissan Silvia

■Vehicle model: S14/S15
■Engine model: SR20DET
■Year: 10/93 - 08/02
