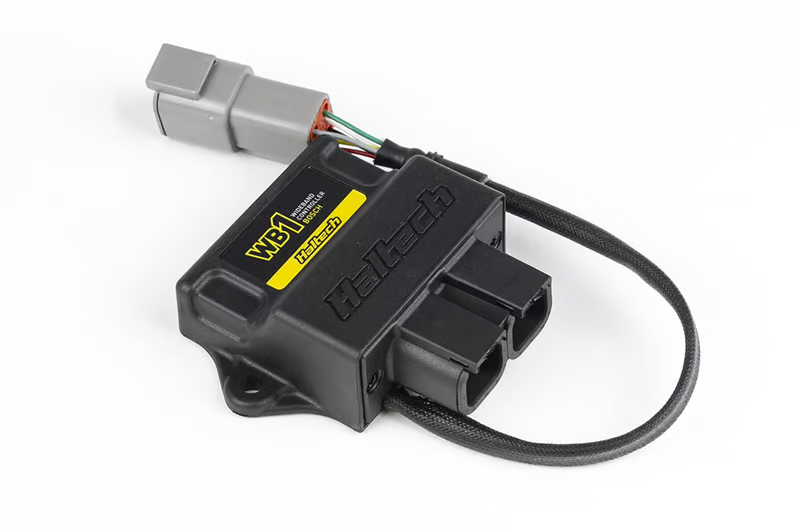

Haltech WBC1 Single Channel Wideband Controller Kit

SKU: HT-059976

Product Options

Add Gauge
Price:
$399.00

More info.

Make 4 interest-free payments of $99.75 fortnightly and receive your order now.



Description

Haltech's CAN Wideband controllers allow accurate measurement of Air/Fuel ratios over a wide range, from rich to lean via the Haltech CAN System for precise engine tuning.

As supplied this product is direct Plug 'n' Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or mutiple CAN device installation using an Elite 4 Port CAN HUB.

If you are connecting this product with a Platinum Pro Plug-in, Sport or Sprint ECU please order a Haltech CAN Cable (8 pin Black Tyco to 8 pin Black Tyco) in a suitable length for your specific installation. If you are connecting this product with a multiple CAN device installation using a Platinum 3 or 6 port CAN HUB please order a Haltech CAN Cable (8 pin White Tyco to 8 pin White Tyco) in a suitable length for your specific installation. Cables are available from 75mm (3") to 3600mm (144") Please see the product Quick Start Guide for further information on selecting the correct colour CAN cable for your specific installation.

Harness Length: 2.5m (8ft)

Outputs: CAN and 0-5 V analogue outputs. Accurate digital signal with diagnostic and status reporting via CAN.

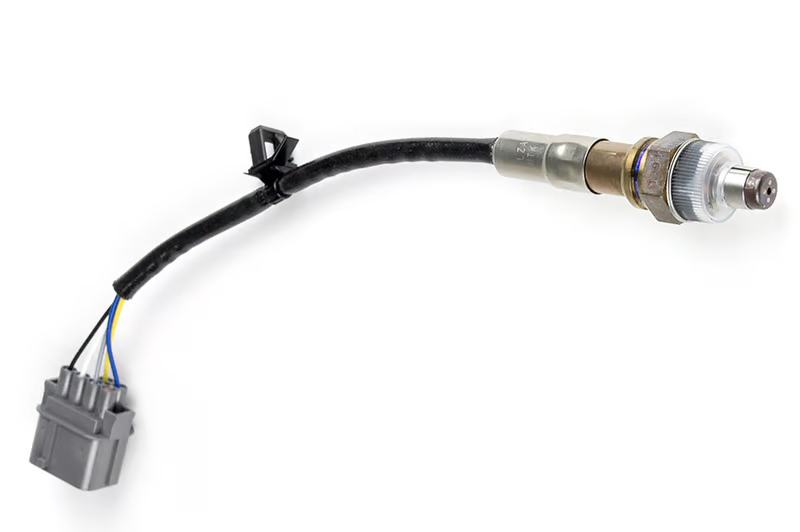

Includes: Wideband Controller, flying lead harness, Elite CAN cable DTM-4 to 8 pin Black TYCO - 300mm (12"), one sensor and weld-on bung.
