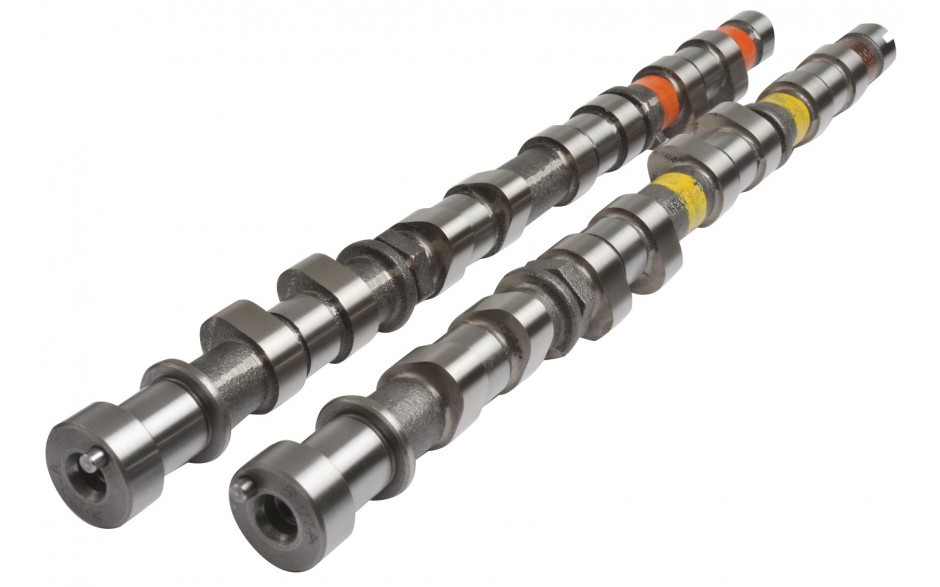

Kelford Camshaft Set - Mitsubishi 4G63 Evo 4 - 7 TX280

SKU: 4-TX280

Product Options

Vehicle
Price:
WAS $839.00
RRP $889.00
NOW $713.15
SAVE 20%!
Sale Ends in
00:00 am, 4 December 2024

More info.

Make 4 interest-free payments of $178.29 fortnightly and receive your order now.

More info.

Make 4 interest-free payments of $178.29 fortnightly and receive your order now.

More info.

Make 4 interest-free payments of $178.29 fortnightly and receive your order now.



Description

Kelford's high HP racing cams. These camshafts suit well built racing engines up to 35lb boost and 9000 RPM with our recommended valve springs.

The Kelford Cams range of camshafts for Mitsubishi 4G63 DOHC engines are renowned worldwide for their superior results. This range is for the DOHC 4G63T, from the Evolution 4 to 8. All of the camshafts in this range are ground on our Toyoda CNC masterless cam grinder to consistently deliver the highest quality product.

Our 'TX' range of camshafts for Mitsubishi 4G63 DOHC engines have the best available lobe designs, featuring low seat timing and maximum valve area while retaining perfect valve control at high RPM. Every cam in the range features the same lobe design as our mega popular 272 degree camshaft which cleaned out the competition in the AMS Import Tuner back-to-back cam test.

We have developed a proven range of camshafts for this engine to suit most applications, including a low lift 272 degree cam to suit stock valve springs and high lift designs for the more serious applications.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63-EVO 4-7 4-TX280
Valve Clearance: Intake:   Set   at the
  Exhaust:   Set   at the

Cam Lift:   Intake: 6.65mm Exhaust: 6.36mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 11.50mm Exhaust: 11.00mm
Advertised Duration @ 0.10mm Intake: 280 Exhaust: 276
Duration @ 1.00mm VALVE LIFT Intake: 238 Exhaust: 230
Timing @ 1.00mm VALVE LIFT IVO: 12 BTDC EVO: 50 BBDC
    IVC: 46 ABDC EVC: 0 TDC
Suggested Centre Lines:   Intake: 107 Exhaust: 115
VALVE Lift @ TDC Intake: 2.09mm Exhaust: 1.00
