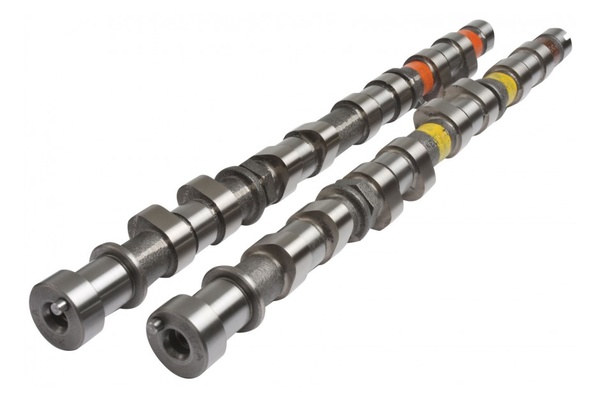

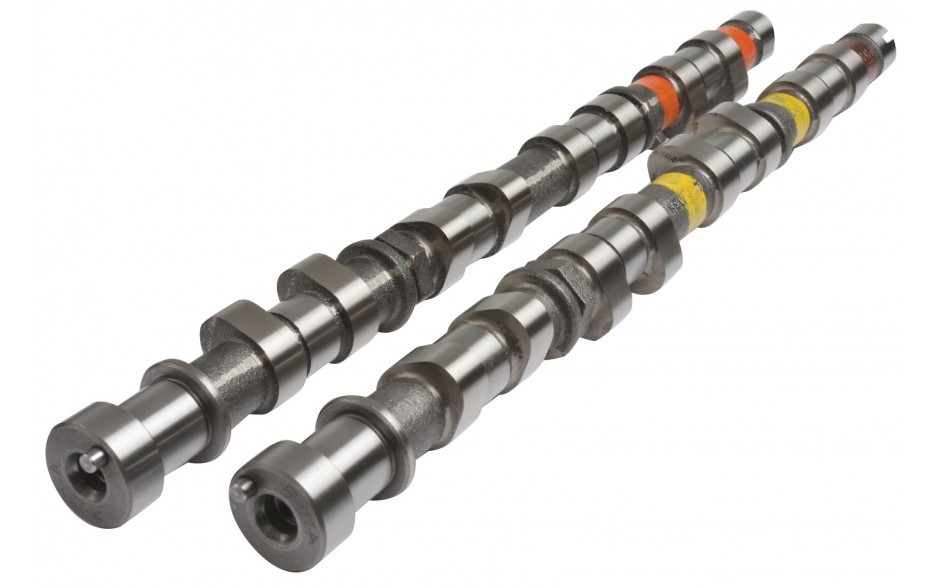

Kelford Camshaft Set - Mitsubishi 4G63 Evo 9 TX268

SKU: 9-TX268
Price:
$925.00

Description

Kelford's high performance cams for mid range performance engines, 350-550hp using E85 or similar blend fuels.

The Kelford Cams range of camshafts for Mitsubishi 4G63 DOHC engines are renowned worldwide for their superior results. This range is for the DOHC 4G63T Evolution 9 MIVEC engine. All of the camshafts in this range are ground on Kelford's Toyoda CNC masterless cam grinder to consistently deliver the highest quality product.

Kelford's 'TX' range of camshafts for Mitsubishi 4G63 DOHC engines have the best available lobe designs, featuring low seat timing and maximum valve area while retaining perfect valve control at high RPM.

Please note: The lift at TDC figure is with the cam at full retard on factory centreline.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 EVO 9 MIVEC 9-TX268
Valve Clearance: Intake:   Set   at the
  Exhaust:   Set   at the

Cam Lift:   Intake: 6.36mm Exhaust: 6.07mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 11.00mm Exhaust: 10.50mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 268
Duration @ 1.00mm VALVE LIFT Intake: 216 Exhaust: 220
Timing @ 1.00mm VALVE LIFT IVO: 22 ATDC EVO: 43 BBDC
    IVC: 58 ABDC EVC: 3 BTDC
Suggested Centre Lines:   Intake: 130 Exhaust: 113
VALVE Lift @ TDC Intake: 0.12mm Exhaust: 0.84
