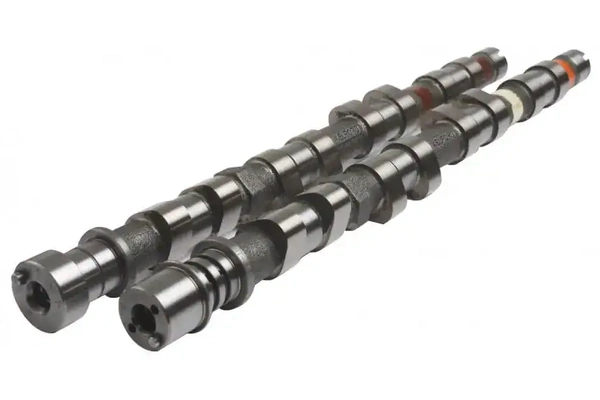

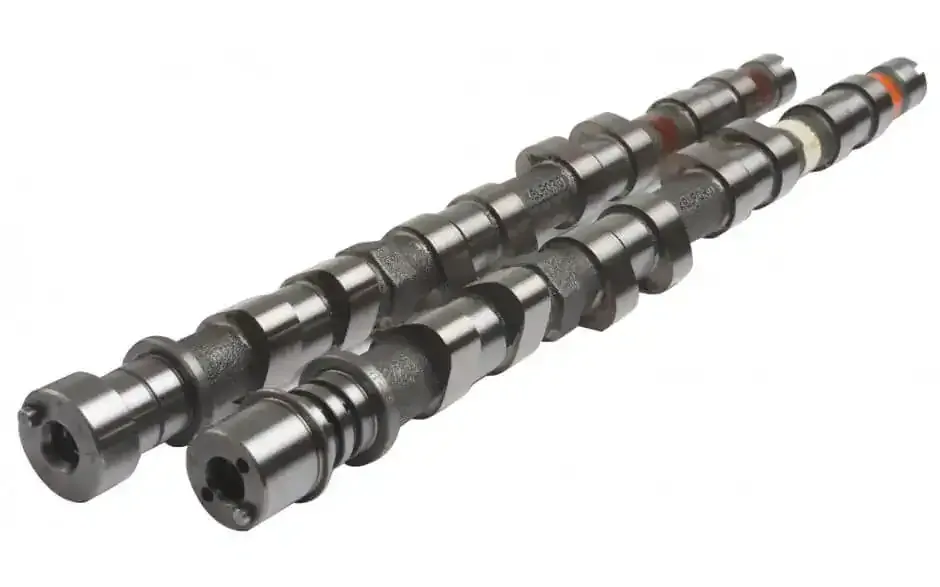

Kelford Camshaft Set - Mitsubishi 4G63 Evo 9 TX272-L

SKU: 9-TX272-L
Price:
$925.00

Description

Kelford's these 272 degree high performance camshafts are designed with lower lift for use with the stock valve springs.

The Kelford Cams range of camshafts for Mitsubishi 4G63 DOHC engines are renowned worldwide for their superior results. This range is for the DOHC 4G63T Evolution 9 MIVEC engine. All of the camshafts in this range are ground on Kelford's Toyoda CNC masterless cam grinder to consistently deliver the highest quality product.

Kelford's 'TX' range of camshafts for Mitsubishi 4G63 DOHC engines have the best available lobe designs, featuring low seat timing and maximum valve area while retaining perfect valve control at high RPM.

Please note: The lift at TDC figure is with the cam at full retard on factory centreline.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 EVO 9 MIVEC 9-TX272-L
Valve Clearance: Intake:   Set   at the
  Exhaust:   Set   at the

Cam Lift:   Intake: 5.78mm Exhaust: 5.78mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 10.00mm Exhaust: 10.00mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 226 Exhaust: 226
Timing @ 1.00mm VALVE LIFT IVO: 17 ATDC EVO: 48 BBDC
    IVC: 63 ABDC EVC: 2 BTDC
Suggested Centre Lines:   Intake: 130 Exhaust: 115
VALVE Lift @ TDC Intake: 0.14mm Exhaust: 1.12
