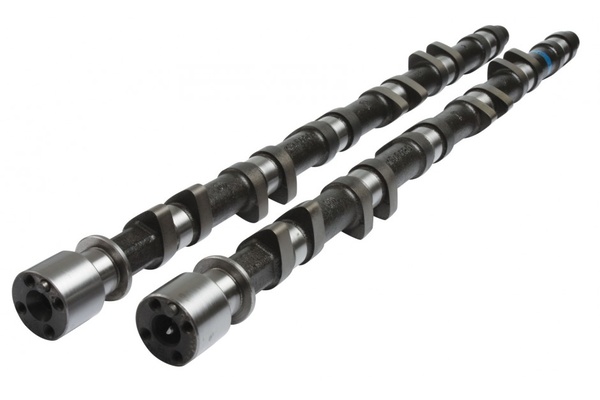

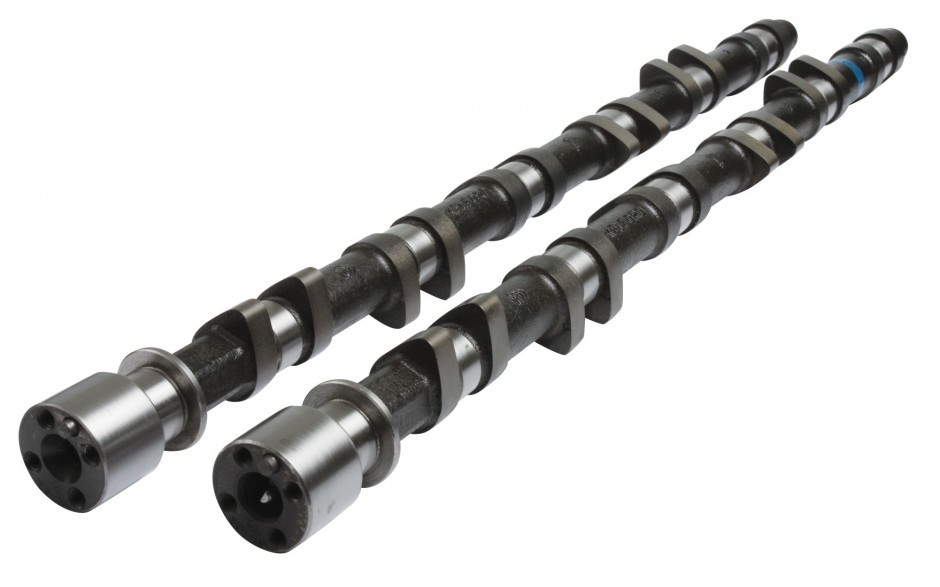

Kelford Camshaft Set - Nissan RB25 NEO 244-A2
SKU: 244-A2
Make 4 interest-free payments of $247.56 fortnightly and receive your order now.
Make 4 interest-free payments of $247.56 fortnightly and receive your order now.
Make 4 interest-free payments of $247.56 fortnightly and receive your order now.
Description
Kelford's 272 Degree street/strip performance cams. No cylinder head clearancing required. Can run stock valve spring up to 7500rpm and 1bar of boost.
The Kelford Cams range of camshafts for Nissan RB25 NEO engines have been designed to work with the stock variable VCT intake cam, this allows our customers to retain lower rpm torque where a large fixed timing cam is not required. This catalogue range of cams features our drop in street profiles with no head clearancing required. High lift and custom cams that retain the NVCS/VCT are available upon request.
If you can't find your perfect camshaft within our catalogue, designing custom profiles is our specialty! Simply order the custom camshaft and provide us all the details of your build. Confidential development for race teams is also available.

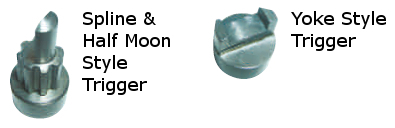

Neo cams are fitted with the Yoke style trigger only. By default we fit the Yoke type, if you need the "Spline & half Moon style" type please let us know when ordering.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
NISSAN | RB25 NEO | 244-A2 | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 9.20mm | Exhaust: | 9.20mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 8.95mm | Exhaust: | 8.90mm | |||
Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 272 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 226 | Exhaust: | 234 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 51 BBDC | |||
IVC: | EVC: | 3 ATDC | |||||
Suggested Centre Lines: | Intake: | VARI | Exhaust: | 114 | |||
VALVE | Lift @ TDC | Intake: | Exhaust: | 1.20 |
