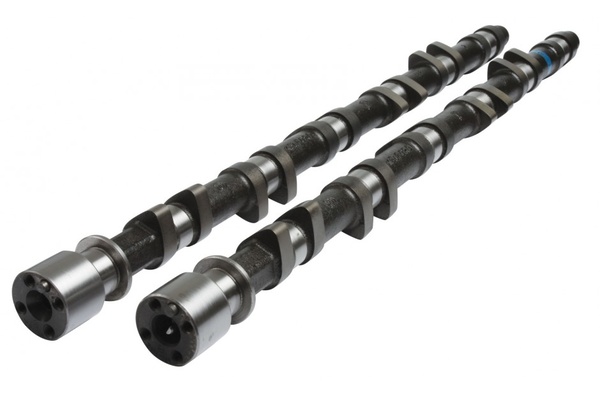

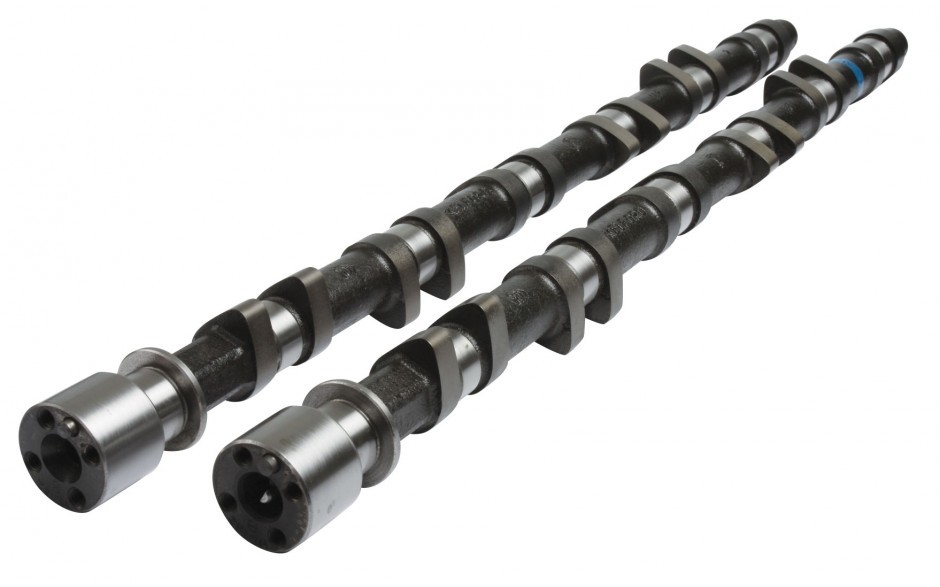

Kelford Camshaft Set - Nissan RB25 NVCS 246-A
SKU: 246-A
More infoMake 4 interest-free payments of AU$291.25 fortnightly and receive your order now.
Description
Kelford's 262 Degree street performance cams. Low duration, low overlap, maximum velocity, for ultimate throttle response. No cylinder head clearancing needed. OEM spring can be used with 7500rpm and 1bar of boost.
The Kelford Cams range of camshafts for Nissan RB25 NVCS/VCT engines. The RB25 NVCS engine is bought out in Nissan's R33 Skyline AKA the "BOAT". This catalogue range is designed for hydraulic lifter engines, however solid profiles are available on request. The low lift lobe designs on the A and A2 cams have proved very popular because there is no requirement for head clearancing.

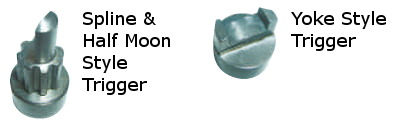

RB camshafts are also fitted with two different kinds of triggers; by default we fit the spline and half moon type, if you need the "yoke shaped" type please let us know when ordering.
Specifications
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | RB25 NVCS | 246-A | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 9.30mm | Exhaust: | 9.30mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 9.30mm | Exhaust: | 9.30mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 262 | Exhaust: | 262 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 222 | Exhaust: | 222 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 45 BBDC | |||
| IVC: | EVC: | 3 BTDC | |||||
| Suggested Centre Lines: | Intake: | VARI | Exhaust: | 114 | |||
| VALVE | Lift @ TDC | Intake: | Exhaust: | 0.81 | |||
