Kelford Camshaft Set - Nissan RB25 NVCS 246-B

Price:

AU$1,165.00

Make 4 interest-free payments of AU$291.25 fortnightly and receive your order now.

In-store Pick up - AU$0.00
Choose this option to pickup your order from our store located at 36 Mary Parade, Rydalmere NSW 2116

Description

Kelford's 272 Degree High lift Race profiles for high performance race builds. Machining is needed for cam swing. Must use KVS25R spring.

The Kelford Cams range of camshafts for Nissan RB25 NVCS/VCT engines. The RB25 NVCS engine is bought out in Nissan's R33 Skyline AKA the "BOAT". This catalogue range is designed for hydraulic lifter engines, however solid profiles are available on request. The low lift lobe designs on the A and A2 cams have proved very popular because there is no requirement for head clearancing.

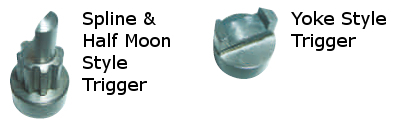

RB camshafts are also fitted with two different kinds of triggers; by default we fit the spline and half moon type, if you need the "yoke shaped" type please let us know when ordering.

Specifications

Engine Make:		Engine Model:			Part Number:
NISSAN		RB25 NVCS			246-B
Valve Clearance:		Intake:	Set		at the
		Exhaust:	Set		at the

Cam Lift:		Intake:		10.00mm	Exhaust:	10.00mm
Rocker Ratio:		Intake:		1	Exhaust:	1
Nett Valve Lift:		Intake:		10.00mm	Exhaust:	10.00mm
Advertised Duration @	0.10mm	Intake:		264	Exhaust:	272
Duration @	1.00mm VALVE LIFT	Intake:		224	Exhaust:	232
Timing @	1.00mm VALVE LIFT	IVO:			EVO:	51 BBDC
		IVC:			EVC:	1 BTDC
Suggested Centre Lines:		Intake:		VARI	Exhaust:	116
VALVE	Lift @ TDC	Intake:			Exhaust:
