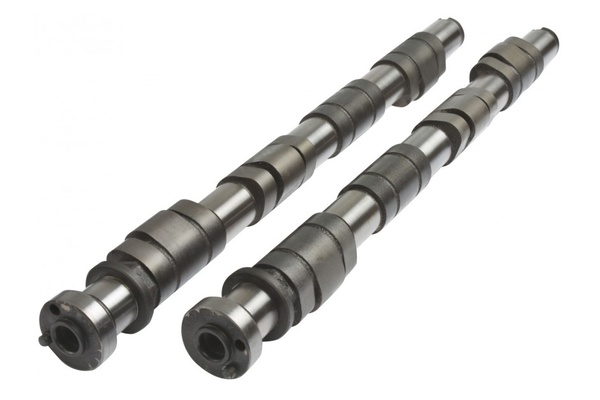

Kelford Camshaft Set - Nissan SR16VE / SR20VE 184-B

SKU: 184-B
Kelford Camshaft Set - Nissan SR16VE / SR20VE 184-B

Price:
AU$1,340.00

More info.

Make 4 interest-free payments of AU$335.00 fortnightly and receive your order now.



Calculate Shipping

Description

Kelford's Nissan N1 specification. Primary lobe specification is 244/248 Degrees advertised duration, 8.40mm8.00mm lift.

Kelford Cams have always been the innovator when it comes to camshafts for Nissan SR16-20-VE/T engines. These engines have the potential to make plenty of power, but it doesn't come easy.

We continue to research and develop, working with the best SR engine builders in the world to bring you the best camshafts for these motors.

Our catalogue range caters for both naturally aspirated and turbocharged applications.

Specifications

Engine Make: Engine Model: Part Number:
NISSAN SR16/20VE 184-B
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.40mm Set COLD at the CAM

Cam Lift:   Intake: 7.70mm Exhaust: 7.84mm
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 12.00mm Exhaust: 11.90mm
Advertised Duration @ 0.10mm Intake: 324 Exhaust: 300
Duration @ 1.00mm VALVE LIFT Intake: 255 Exhaust: 252
Timing @ 1.00mm VALVE LIFT IVO: 23.5 BTDC EVO: 55 BBDC
    IVC: 51.5 ABDC EVC: 17 ATDC
Suggested Centre Lines:   Intake: 104 Exhaust: 109
VALVE Lift @ TDC Intake: 3.45mm Exhaust: 2.33
