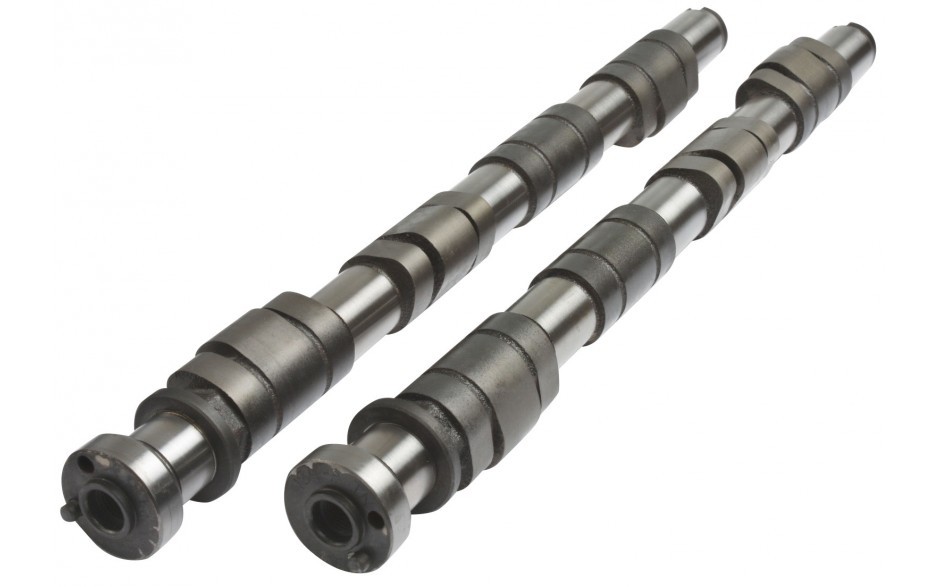

Kelford Camshaft Set - Nissan SR16VE / SR20VE 184-C4
SKU: 184-C4
More infoMake 4 interest-free payments of $335.00 fortnightly and receive your order now.
Make 4 interest-free payments of $335.00 fortnightly and receive your order now.
Make 4 interest-free payments of $335.00 fortnightly and receive your order now.
314/312 Degrees advertised duration, 12.50mm/11.80mm lift.
Description
Kelford's cams to suit track and drag racing cars. Large duration low lobes to enhance midrange transition onto the high lobes. Primary lobe specification is 260/252 Degrees advertised duration, 10.20mm/10.20mm lift.
Kelford Cams have always been the innovator when it comes to camshafts for Nissan SR16-20-VE/T engines. These engines have the potential to make plenty of power, but it doesn't come easy.
We continue to research and develop, working with the best SR engine builders in the world to bring you the best camshafts for these motors.
Our catalogue range caters for both naturally aspirated and turbocharged applications.
Specifications
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | SR16/20VE | 184-C4 | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.40mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 8.01mm | Exhaust: | 7.78mm | |||
| Rocker Ratio: | Intake: | 1.6 | Exhaust: | 1.6 | |||
| Nett Valve Lift: | Intake: | 12.50mm | Exhaust: | 11.80mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 314 | Exhaust: | 312 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 266 | Exhaust: | 258 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 32 BTDC | EVO: | 47 BBDC | ||
| IVC: | 54 ABDC | EVC: | 31 ATDC | ||||
| Suggested Centre Lines: | Intake: | 101 | Exhaust: | 98 | |||
| VALVE | Lift @ TDC | Intake: | 4.67mm | Exhaust: | 3.94 | ||
