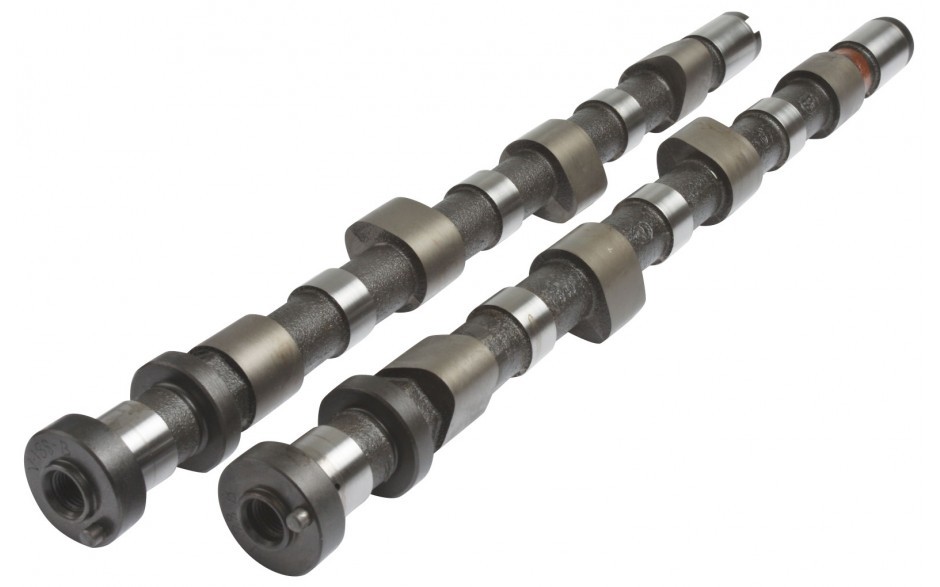

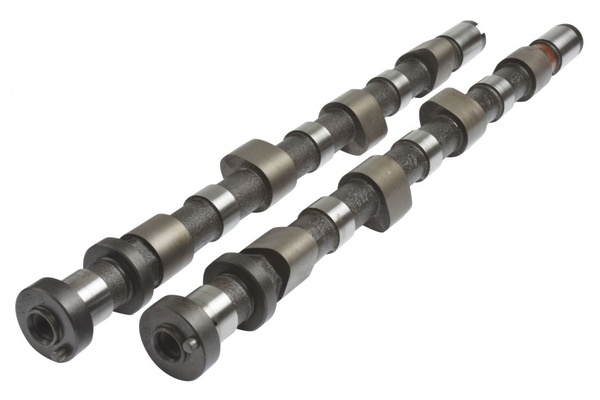

Kelford Camshaft Set - Nissan SR20 S13 188-C

Price:

AU$749.00

Make 4 interest-free payments of AU$187.25 fortnightly and receive your order now.

In-store Pick up - AU$0.00
Choose this option to pickup your order from our store located at 36 Mary Parade, Rydalmere NSW 2116

Description

Kelford's 280 Degree racing cams to suit street / strip engines with a large turbo. Requires KVS93 or KVS93-BT valve springs if using over 2 bar boost.

Kelford Cams range of street and race track proven camshafts are for the SR20DET non-NVCS hydraulic lifter engines. This range of cams give our customers the benefits of increasing power and extending the life of parts.

Our catalogue offering cater for a range of applications, including our ultimate drift specification which features low seat to seat duration for fast spool and lots of top end power.

Specifications

Engine Make:		Engine Model:			Part Number:
NISSAN		SR20DET S13 TURBO			188-C
Valve Clearance:		Intake:	Set		at the
		Exhaust:	Set		at the

Cam Lift:		Intake:		8.06mm	Exhaust:	7.74mm
Rocker Ratio:		Intake:		1.55	Exhaust:	1.55
Nett Valve Lift:		Intake:		12.50mm	Exhaust:	12.00mm
Advertised Duration @	0.10mm	Intake:		280	Exhaust:	280
Duration @	1.00mm VALVE LIFT	Intake:		236	Exhaust:	236
Timing @	1.00mm VALVE LIFT	IVO:		8 BTDC	EVO:	53 BBDC
		IVC:		48 ABDC	EVC:	3 ATDC
Suggested Centre Lines:		Intake:		110	Exhaust:	115
VALVE	Lift @ TDC	Intake:		1.82mm	Exhaust:	1.28
