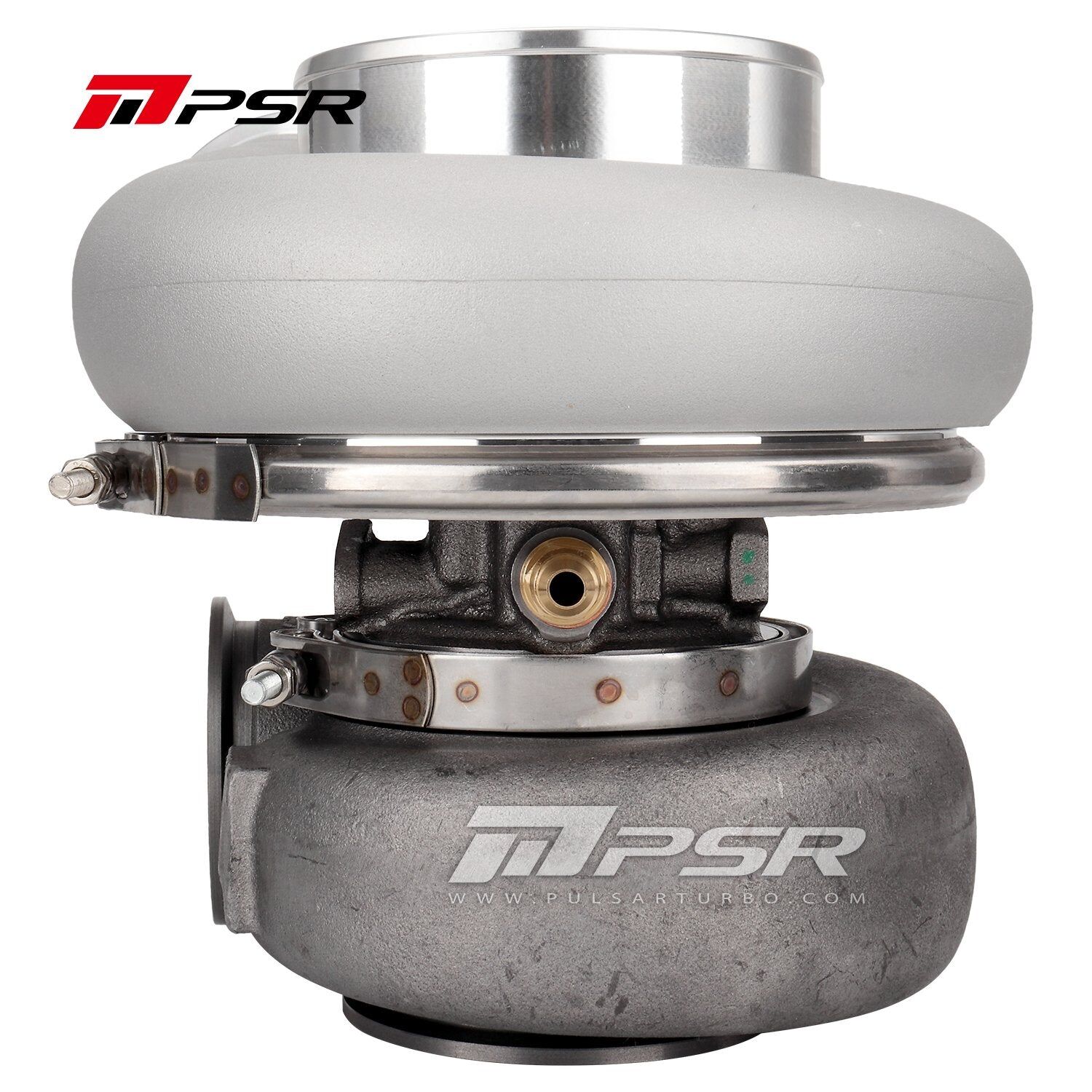

High-Performance Turbocharger

Unlock the full potential of your engine with this advanced turbocharger, designed for maximum performance and reliability. Perfect for professionals and enthusiasts, it delivers unparalleled durability and power.

Key Features:

• Dual ceramic ball bearing system ensures optimal turbo response and reduces shaft motion for enhanced durability.
• 10 Blade G-Aero billet compressor wheel with extended tapered tip technology for improved airflow.
• 9 Blade G-Aero Inconel 713c turbine wheel crafted for exceptional heat resistance and reliability.
• Anti-Surge ported-shroud compressor inlet, cover integrated with speed sensor port for advanced monitoring.
• 8 turbine housing options for flexible configurations.
• Installation hardware included by default: 3″ flange kit for compressor outlet, T4 gasket, 3″ flange kit for turbine inlet, 3.5″/4″ flange kit for turbine outlet, and oil drain fitting kit.
• Oil feed fitting needs to be purchased separately.

Specifications:

• Compressor Wheel: 73 x 91 mm
• Turbine Wheel: 82 x 75 mm
• Compressor Inlet: 4″ Hose
• Compressor Outlet: 3″ Hose
• Turbine Inlet: 3″ V-Band, T4 Divided, or T4 Open
• Turbine Outlet: 3.5″ V-Band or 4″ V-Band
• Water Ports: -6AN
• Oil Feed: Flange required (recommended size: -4AN Std T4 Flange)
• Oil Drain: -12AN (O-Ring sealed Flange Kit included)

Included Components:

• Inlet flange and clamp (DVB)
• Outlet flange and clamp

Turbine Housing Options:

• T4 (Divided) inlet, V-Band outlet (fits 4″ OD tubing), 1.01 A/R
• T4 (Open) inlet, V-Band outlet (fits 3.5″ OD tubing), 1.15 A/R
• T4 (Divided) inlet, V-Band outlet (fits 4″ OD tubing), 0.95 A/R
• T4 (Divided) inlet, V-Band outlet (fits 3.5″ OD tubing), 1.15 A/R
• T4 (Divided) inlet, V-Band outlet (fits 4″ OD tubing), 1.28 A/R
• V-Band inlet (fits 3″ OD tubing) and V-Band outlet (fits 3.5″ OD tubing), 1.01 A/R
• V-Band inlet (fits 3″ OD tubing) and V-Band outlet (fits 3.5″ OD tubing), 1.15 A/R
• V-Band inlet (fits 3″ OD tubing) and V-Band outlet (fits 3.5″ OD tubing), 1.28 A/R

Engineered to perform in extreme conditions, this turbocharger provides a versatile solution for high-performance applications. Its advanced technology and durable construction make it the perfect upgrade for your vehicle.
