Radium 8AN ORB Female to 6AN ORB Male Adaptor Fitting

Radium 8AN ORB Female to 6AN ORB Male Adaptor Fitting

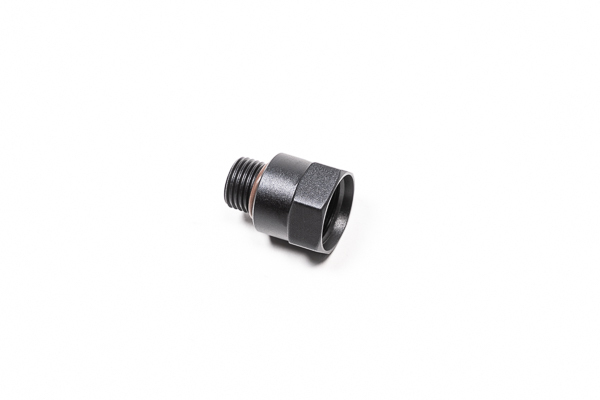

This precision-machined adapter fitting converts an 8AN ORB (O-Ring Boss) female port to a 6AN ORB male connection, allowing you to step down between ORB port sizes in a fuel, oil, or coolant system without the need for additional fittings or hose sections.

AN ORB fittings use positive O-ring sealing rather than tapered threads — no PTFE paste or thread sealant required. Lubricate the O-ring with engine oil before installation. Compatible with all fuel types including E85, ethanol, and methanol.

Suits: Universal — any application requiring an 8AN ORB female to 6AN ORB male step-down adapter

Specifications:

• Female port: 8AN ORB (3/4-16 thread)
• Male port: 6AN ORB (9/16-18 thread)
• Sealing: O-ring boss (O-ring included)

Available Part Numbers:

• 14-0600 — 8AN ORB Female to 6AN ORB Male Adaptor Fitting

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium for precision fit and long-term durability
• ✅ Trusted by tuners and race teams running high-power builds worldwide
• ✅ O-ring sealed ORB threads — no PTFE paste or thread sealant required
• ✅ Compatible with E85, ethanol, methanol, pump petrol, and flex fuel applications
