Radium 8AN ORB To 6AN ORB Swivel Union Fitting

Radium 8AN ORB To 6AN ORB Swivel Union Fitting

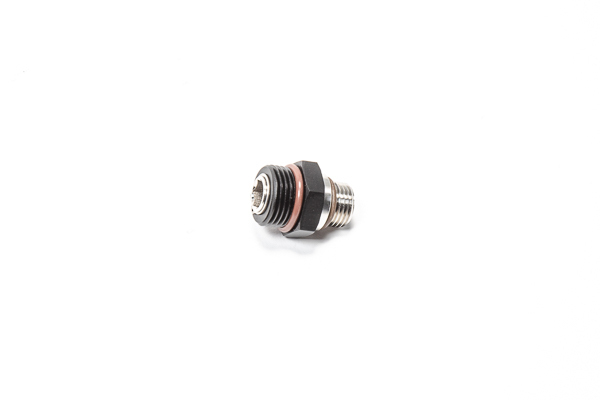

Anodized billet aluminum swivel union adapter fitting engineered by Radium Engineering to convert 8AN ORB (O-Ring Boss) ports to 6AN ORB connections. This versatile fitting features FKM (Viton) O-rings for compatibility with all oil and fuel types, providing a reliable, leak-free connection for high-performance applications.

Key Features

• ✓ 8AN ORB to 6AN ORB conversion
• ✓ Swivel design for easy installation and routing
• ✓ CNC-machined billet aluminum construction
• ✓ FKM (Viton) O-rings for all oil and fuel types
• ✓ Anodized finish for corrosion resistance
• ✓ E85 and all fuel types compatible
• ✓ Professional-grade motorsport component

Technical Specifications

• Application: Universal - 8AN ORB to 6AN ORB conversion
• Part Number: 20-0686
• Inlet: 8AN ORB (9/16"-18 O-Ring Boss)
• Outlet: 6AN ORB (9/16"-18 O-Ring Boss)
• O-Rings: FKM (Viton)
• Construction: CNC-machined billet aluminum
• Fuel Compatibility: Gasoline, E85, and alternative fuels

Applications

Ideal for converting 8AN ORB ports to 6AN ORB connections in fuel systems, oil systems, and other high-performance applications. Perfect for custom plumbing where port size conversion is required with swivel functionality for easy routing.

Benefits

• Swivel design simplifies installation and routing
• FKM (Viton) O-rings compatible with all fuel and oil types
• CNC-machined precision ensures leak-free fitment
• Anodized finish provides long-term durability
• Universal 9/16"-18 O-Ring Boss thread pitch
• Professional motorsport-grade construction

Important Note: Features FKM (Viton) O-rings for compatibility with all oil and fuel types. Universal fitment for any application using 8AN and 6AN ORB ports.

Fast shipping available throughout Australia. Lead times may vary - contact us for current availability.
