Radium AN ORB Fuel Surge Tank Bulkhead Fittings
SKU: 20-0170
Price:
WAS $34.99
RRP $34.99
NOW $31.49
SAVE 10%!
Sale Ends in
00:00 am, 30 September 2026
More infoMake 4 interest-free payments of $7.87 fortnightly and receive your order now.
Description

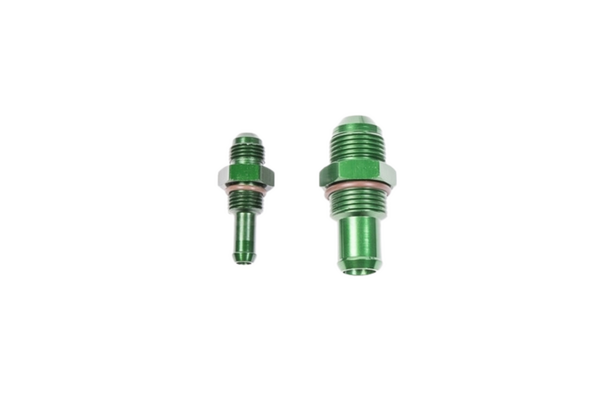

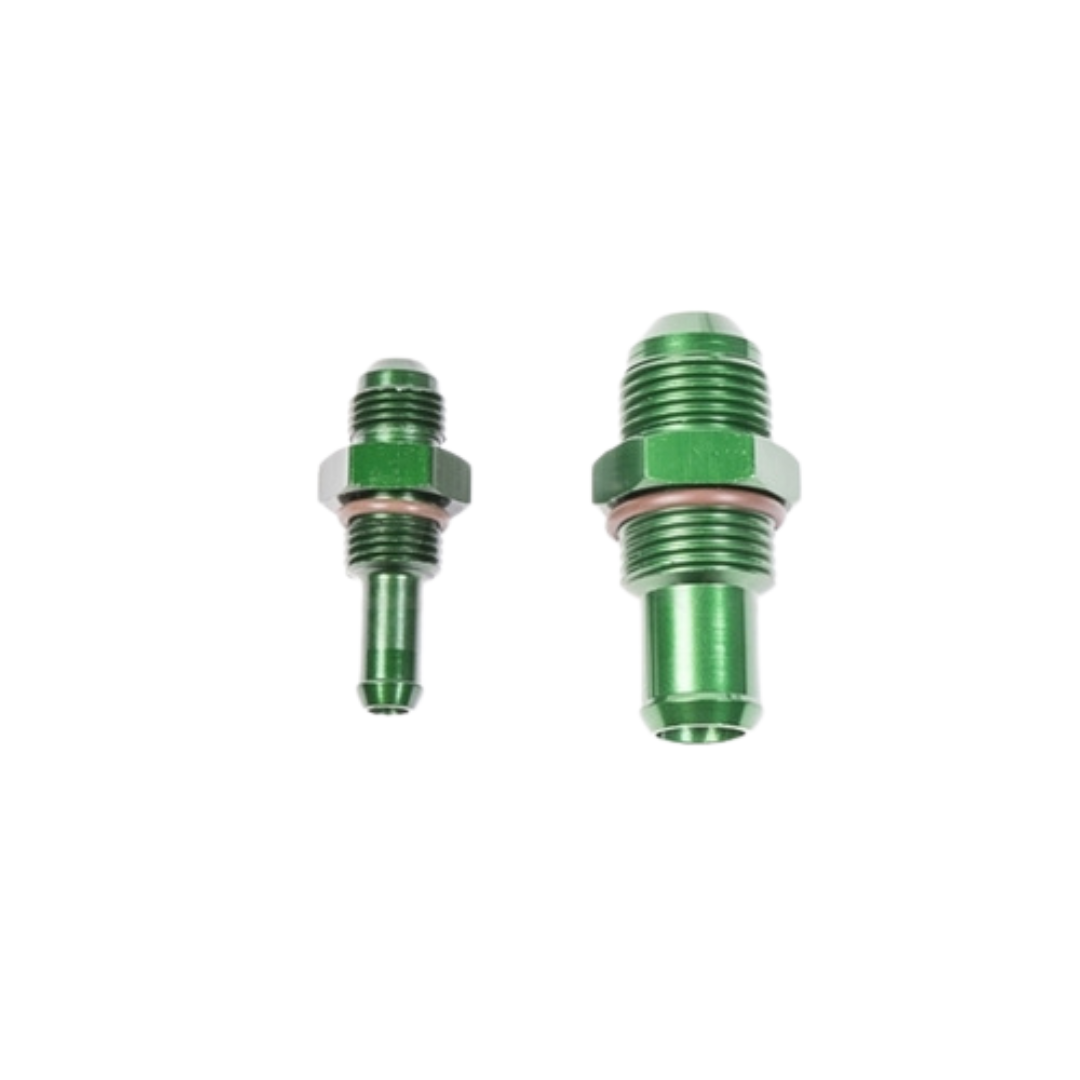

Radium AN ORB Fuel Surge Tank Bulkhead Fittings
Bright-dip green anodised aluminium bulkhead fittings designed for use with Radium Engineering Fuel Surge Tanks (FST). Each fitting includes a preassembled Viton O-ring and requires a threaded hole with chamfer to be drilled into the mating part for sealing. Two sizes available to suit standard and high-volume FST configurations.
Variant & Part Number Guide
| Part Number | AN Size | Barb OD | Thread Required | Introduced |
|---|---|---|---|---|
| 20-0170 | 6AN ORB | 8.5mm (5/16") | 9/16"-18 with chamfer | Radium FST (post-2014) |
| 20-0196 | 10AN ORB | 15.9mm (5/8") | 7/8"-14 with chamfer | Radium High Volume FST (post-2015) |
Features
- Bright-dip green anodised aluminium construction
- Preassembled Viton O-ring — compatible with all fuel types including E85 and methanol
- AN ORB (O-ring Boss) thread for a positive, leak-free seal
- Requires threaded hole with chamfer in mating part for installation
Part Numbers:
- 20-0170 — 6AN ORB Bulkhead Fitting, 8.5mm Barb (Radium FST, post-2014)
- 20-0196 — 10AN ORB Bulkhead Fitting, 5/8" Barb (Radium High Volume FST, post-2015)
Why Radium Engineering?
- ✅ Manufactured in the USA to motorsport-grade tolerances
- ✅ CNC-machined billet aluminium components built for performance and longevity
- ✅ Trusted by high-power build tuners and race teams worldwide
- ✅ Viton O-ring sealed — compatible with E85, pump petrol, methanol, and all exotic fuel types
- ✅ Designed specifically for Radium Engineering Fuel Surge Tank systems
