Radium AN ORB to Male AN Flare Fitting
SKU: 14-0130
More infoMake 4 interest-free payments of $6.07 fortnightly and receive your order now.
Description

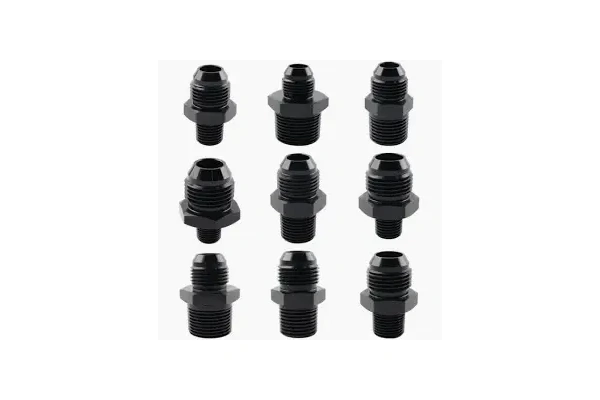

Radium AN ORB to Male AN Flare Fitting
These precision-machined adapter fittings convert AN ORB (O-Ring Boss) ports to male AN flare connections, providing versatile plumbing options for fuel rails, surge tanks, fuel pressure regulators, and other high-performance fuel system components. Available in 8 size combinations across 6AN, 8AN, and 10AN ORB and flare sizes.
AN ORB fittings use positive O-ring sealing rather than tapered threads — no PTFE paste or thread sealant required. Lubricate the O-ring with engine oil before installation. ORB ports are an industry standard found on most Radium Engineering products and a wide range of aftermarket fuel system components.
Suits: Universal — fuel rails, surge tanks, fuel pressure regulators, and all AN ORB ported components
Available Part Numbers:
| Part Number | ORB Port | Male Flare |
|---|---|---|
| 14-0195 | 6AN ORB | 6AN Male Flare |
| 14-0245 | 6AN ORB | 8AN Male Flare |
| 14-0151 | 8AN ORB | 6AN Male Flare |
| 14-0152 | 8AN ORB | 8AN Male Flare |
| 14-0153 | 8AN ORB | 10AN Male Flare |
| 14-0130 | 10AN ORB | 6AN Male Flare |
| 14-0131 | 10AN ORB | 8AN Male Flare |
| 14-0132 | 10AN ORB | 10AN Male Flare |
Why Radium Engineering?
- ✅ Manufactured in the USA to motorsport-grade tolerances
- ✅ CNC-machined billet aluminium for precision fit and long-term durability
- ✅ Trusted by tuners and race teams running high-power builds worldwide
- ✅ O-ring sealed ORB threads — no PTFE paste or thread sealant required
- ✅ Compatible with E85, ethanol, methanol, pump petrol, and flex fuel applications
