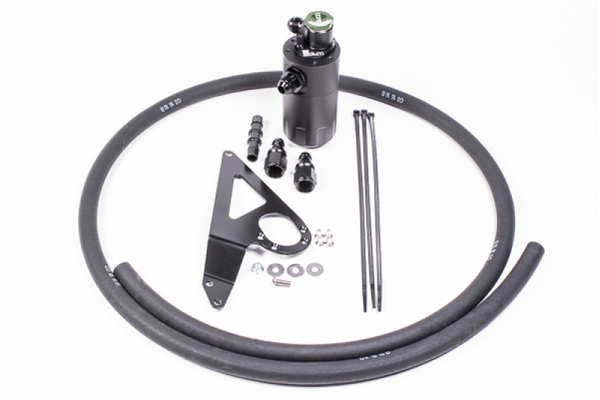

Radium Catch Can Kit PCV Side RH - Subaru BRZ/Toyota 86

An oil catch can is essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from aggressive driving. Excess oil-saturated air circulating back into the air intake stream can lead to degraded performance. FR-S / BRZ / 86 MOUNTING LOCATION Radium engineers have strategically located the catch cans for compatibility with both Right Hand Drive (RHD) and Left Hand Drive (LHD) "86" model variations. Some brake clearancing is necessary on RHD installations. Both of these kits are also compatible with all current aftermarket forced induction kits. For mounting, the kits use factory bosses and holes in the vehicle. No cutting, drilling or permanent modification to the vehicle is required. The 20-0101 PCV Valve kit mounts on the right side of the engine bay. This catch can runs inline with the 3/8" PCV (positive crankcase ventilation) valve. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: Because the Radium catch cans are pressure sealed, they are great for boosted applications as well so connecting to the intake manifold is permitted. Features: Radium billet oil catch can with integrated condenser and dipstick Radium laser cut powder coated "86" specific mounting bracket Anodized aluminum banjo bolt, AN hose ends, and adapter fittings Enough PCV hose to mate to custom applications Stainless steel mounting hardware Installation instructions PETCOCK DRAIN KIT OPTION Anodized 4AN ORB barbed fitting Nylon ¼” barb mini ball valve 6ft high temperature rated PCV hose This kit, sold seperately, can be used to remotely drain the catch cans without the need to unscrew the canister body.
