Radium Fuel Level Diagnostic Indicator

Radium Fuel Level Diagnostic Indicator (20-0508)

The Radium Engineering Fuel Level Diagnostic Indicator is an LED visual reference designed for use with the Radium 20-0461 Fuel Level Switch. When the fuel level switch is triggered, the signal is sent directly to this LED indicator — providing a clear visual alert for low fuel level. While not always practical to monitor while driving, it is particularly useful for diagnosing potential fuelling issues during setup and testing.

Note: Soldering is required for installation.

Installation Notes

• Requires a 2AN ORB (5/16"-24) threaded port for mounting
• If stacking on top of the fuel level switch (as shown), a minimum panel thickness of 0.75" is required

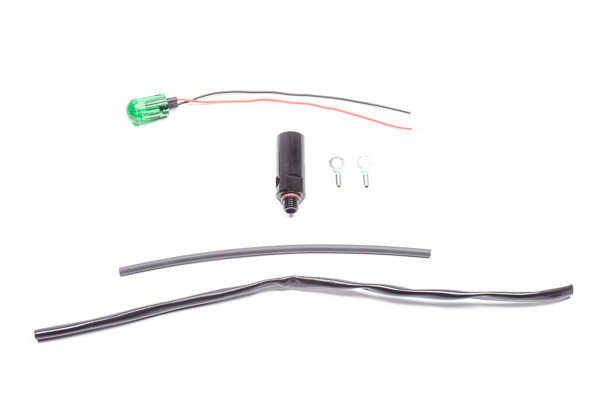

• Soldering is required — all necessary components are included in the kit

Compatible Mating Parts

• 20-0461 — Radium Fuel Level Switch (required for operation)

Part Number:

• 20-0508 — Radium Fuel Level Diagnostic Indicator

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium components built for performance and longevity
• ✅ Trusted by high-power build tuners and race teams worldwide
• ✅ Simple LED signal output — direct integration with Radium fuel level switch
• ✅ Compatible with all Radium fuel cell and surge tank installations using the 20-0461 switch
