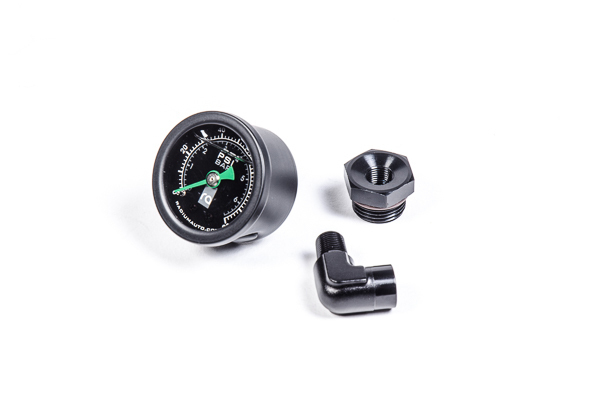

Radium Fuel Pressure Gauge w/8AN ORB Adapter

Radium Fuel Pressure Gauge - with 8AN ORB Adapter

The Radium Engineering Fuel Pressure Gauge is a high-accuracy, silicone-filled gauge suitable for all fuel system applications. The silicone fluid dampens needle vibration for stable, easy-to-read pressure readings under all operating conditions. Features an acrylic lens and reads from 0 to 100 PSI (0 to 6.9 BAR) with ±2% accuracy.

Specifications

• Range: 0-100 PSI (0-6.9 BAR)
• Accuracy: ±2%
• Lens: Acrylic
• Fill: Silicone fluid (dampens needle vibration)
• Case OD: 1-5/8" stainless steel
• Bezel OD: 1-3/4"
• Fitting: Nickel plated 1/8" NPT male
• Colour: Black bezel and housing
• Adapter: 8AN ORB included

Notes:

• The internal silicone bubble is normal and does not affect gauge performance
• Do not overpressurise — exceeding the rated range can permanently misalign needle calibration
• Always use PTFE thread sealant paste on NPT threads

Part Number:

• 20-0386 — Radium Fuel Pressure Gauge with 8AN ORB Adapter

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium components built for performance and longevity
• ✅ Trusted by high-power build tuners and race teams worldwide
• ✅ Bolt-on fitment — no cutting, drilling, or fabrication required
• ✅ Compatible with E85, pump petrol, methanol, and all exotic fuel types
