Description

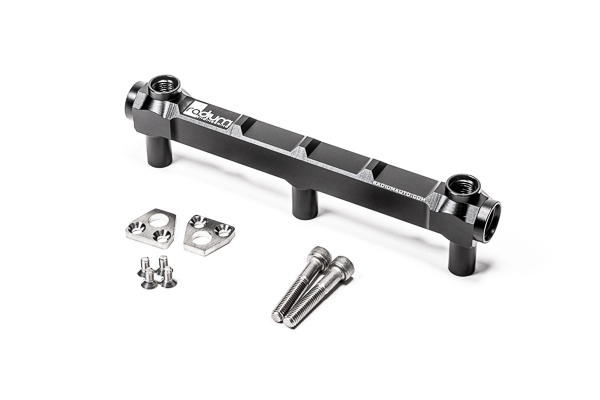

Manufactured with 0.6" large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. The 2 end ports are 3/4"-16 threaded (8AN ORB). The upper area of the engine is very narrow so the 2 top ports are 9/16"-18 threaded (6AN ORB). Stainless steel mounting tabs (shown) are included for superior strength.
The OEM fuel injectors are compatible with these fuel rails. The machined ports are compatible with 11mm upper injector O-rings, as shown below. Because of the tight clearance, the injector electrical connector can be tricky for aftermarket injectors.
This listing for 20-0766 only includes the fuel rail and all of the necessary mounting hardware. This is ideal for those wanting to make a custom fuel system.
Features:
Anodized surface finish for wear and corrosion resistance
Lighweight aluminum construction
Inner bore diameter: 0.6 inch
Compatible with aftermarket Bosch EV14 fuel injectors
Can be converted to a pressure regulated return system
