Radium Fuel Rail, Top Feed Conversion, Nissan SR20DET (S14/S15)

PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB.

8AN ORB Adapter Fittings can be found HERE.
8AN ORB Direct Mount Regulators can be found HERE.
8AN ORB Fuel Pulse Dampers can be found HERE.
Fuel Pressure Gauge Adapters can be found HERE.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

This Nissan Silvia fuel rail kit is specifically designed for the SR20DET S14/S15 OEM intake manifold. For the SR20DET S13 fuel rail kit, go HERE. Manufactured with a 0.69" large internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from solid 6061 aluminum and black anodized for a high quality surface finish. The included phenolic spacers mount the rail to the OEM intake manifold bosses thermal isolation. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (not included). The fuel injector bores are 14mm ID. The kit is designed for specific upper and lower O-ring spacing, as depicted.

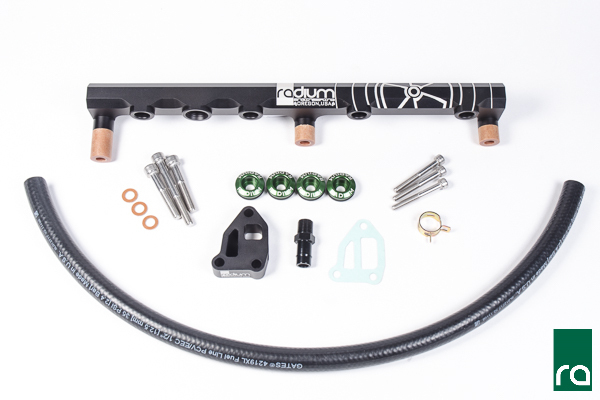

INCLUDED:
All parts listed below are included for a trouble and leak-free installation.

-Black Anodized Aluminum Fuel Rail
-Phenolic Mounting Bolt Spacers (x3)
-Phenolic Mounting Bolt Washers (x3)
-Radium 20-0161, Green Anodized Aluminum 25mm Injector Seats (x4)
-Radium 20-0162, Black Anodized Aluminum IACV Spacer Kit
-Radium 18-0014, IACV Gasket, SR20DET S14/S15 (x1)
-Black Anodized Aluminum IACV Barb Adapter
-Rubber Hose and OEM Clamp for IACV
-Stainless Steel M8x1.25 Mounting Bolts (x3)
-Stainless Steel M6x1 Mounting Bolts (x3)
