Radium Fuel Rails Side feed to Top Feed Conversion WRX STI 94-00

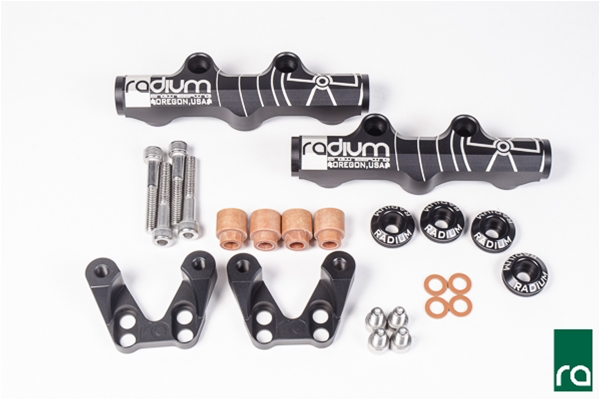

This fuel rail conversion kit is compatible with the Version 1-6 Subaru WRX STI 4-cylinder engines including the popular JDM STi EJ207 and Twin Turbo Legacy GT-B EJ208 . 20-0335-02 Includes: -Black Anodized Laser Etched Aluminum Fuel Rails (x2) -Black Anodized Version 1-6 Conversion Fuel Rail Mount (x2) -Black Anodized and Laser Etched Injector Seats (x4) -Phenolic Thermal Insulating Press-In Spacers (x4) -Phenolic Thermal Insulating Press-In Bolt Washers (x4) -Stainless Steel Hardware It converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (not included). The fuel rail injector bores are 14mm ID. Each rail features a large internal bore to suit even the most fuel hungry engines. They are CNC machined from solid 6061 aluminum, black anodized, and laser engraved for a high quality surface finish. All 6 fuel rail ports are tapped with 8AN ORB (3/4"-16) threads Machined phenolic mounting spacers and washers are included to completely isolate the fuel rail from heat transferred from intake manifold and mounting bolts. This fuel rail conversion kit is compatible with all fuel types including popular alcohol mixtures such as E85. The four included machined injector seats press into the intake manifold and seal air tight. They are anodized and laser etched and are designed for 14mm diameter lower O-ring injectors. NOTE: Neither fuel rail kit comes with hoses. Do I need a pulse damper? The opening and closing of the injectors creates pressure pulses in the fuel rail, which can lead to unstable fuel pressure. In order to achieve a safe and consistent rail pressure, a pulse damper should be used (especially with high flow injectors). The internal diaphragm will absorb oscillating pulses and stabilize fuel pressure. This correction can be measured throughout the RPM range and can often help an erratic surging idle. If you dont use a Pulse Dampners you must use ORB Plug (optional in the listing) The optional Radium 20-0176 fuel pulse damper can be used in any of the three -8AN ORB ports on these fuel rails. Want to reuse the OEM Subaru FPR? If the OEM 2-bolt flanged FPR will be reused, select one of the OEM FPR options above. The 20-0301 OEM FPR adapter is commonly used with EJ20 engines and 20-0303 is used with EJ25 engines (excluding STi). MEASURE YOUR OEM FPR BEFORE ORDERING. These adapters can be used in any of the ports and permits properly clocking for appropriate fitment.
