Radium Injector Seats for Top Feed Conversion Fuel Rails - Nissan SR20DET/RB25DET

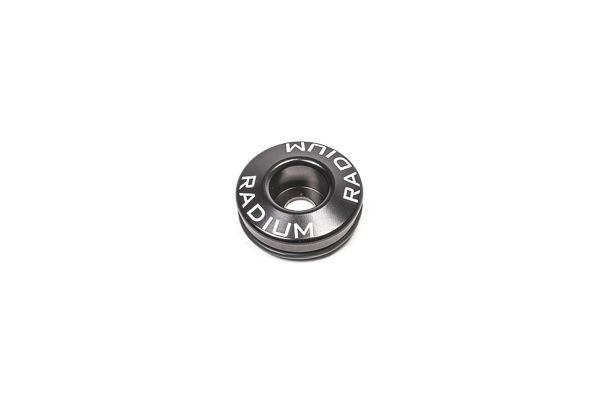

These are the same machined aluminum injector seats used in Radium fuel rail kits. They are required when converting an OEM side feed injector to a top feed injector that uses a 14mm lower O-ring. They simply "pop" into the intake manifold (1 required per injector). They seal to the machined injector counterbore using the included Viton O-ring. The 2 sizes are based on the intake manifold's inside diameter of each injector counterbore. Below are just a few examples of some popular Nissan engines.

• 30mm = KA24DE S13/S14, SR20DET S13
• 25mm = RB25DET, SR20DET S14/S15, SR20VE FWD

All 30mm injector seats are black anodized. All 25mm injector seats are Radium green anodized. The injector seats are CNC machined with a common 14mm bore for the lower injector O-ring.

FEATURES

• CNC machined 6061 aluminum
• Bright dipped anodized
• Laser etched logo
• Viton O-rings

INSTALLATION

Thoroughly clean out any dirt or debris found in the intake manifold injector seat bores. Next, lubricate the Radium injector seat O-rings with engine oil. Press the Radium injector seats down firmly into the intake manifold injector ports until fully seated. If necessary, use a small rubber mallet.
