Description

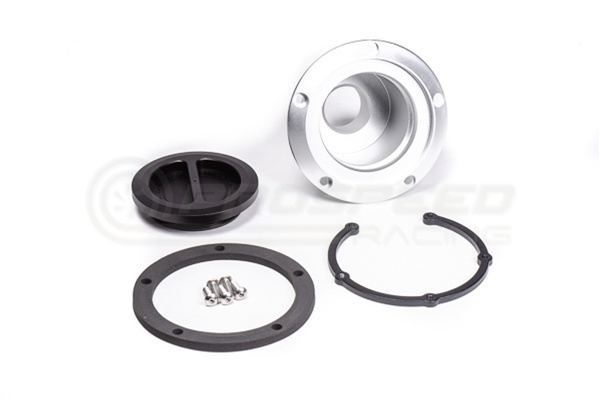

The 20-0505-V Remote Mount Filler, 1.5in, Vented typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 1.5" filler hose (available HERE). The outer diameter is 4.75" and uses 4.25" P.C.D for the five M5 bolts. Total height is 4.1". Requires a 77mm (3.03") hole to be fabricated.
Included:
Vented Cap with Roll-Over Protection
Flanged Fill Neck for 1.5" ID Hose
Ozone/Flame Resistant Gasket
Anodized Aluminum Nut Ring
Stainless Steel M5 Bolts
Notes:
Does not include accessories to connect to the fuel tank.
Can be upgraded later to a dry break using Radium 20-0549-V.
