Description

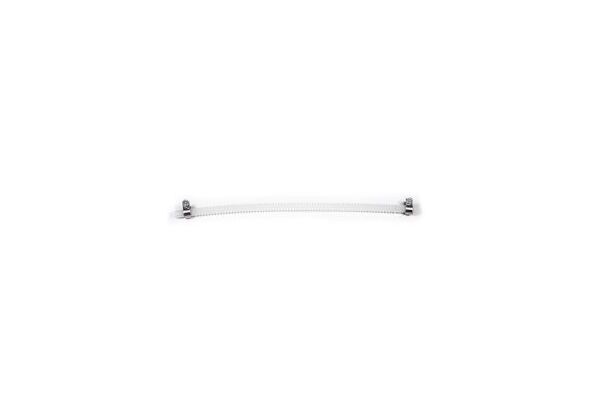

These fuel tubing kits are commonly used for plumbing in-tank submerged fuel pumps. The flexible convoluted tubing is manufactured from polyamide nylon and is therefore resistant to all fuel types including alcohol blends such as E85 and suitable for EFI fuel pressure.
There are 2 inner diameter sizes available including 5/16" (8mm) and 3/8" (10mm). When installing, run hot water over the ends first to loosen the material. This allows the tubing to fit snugly over the barb. Next, torque the reuseable stainless steel SAE J1508 clamps to 13.3 in-lbs. These clamps provide a 360 degree seal with rolled edges to protect the tubing.
RADIUM P/N: 20-0195, 20-0395, and 20-0795 compatible the following.
Walbro F9000262 Gas Fuel Pump
Walbro F9000267 E85 Fuel Pump
Walbro F9000273 Gas Fuel Pump
Walbro F9000274 E85 Fuel Pump
Walbro F9000285 E85 Fuel Pump
Walbro F9000295 E85 Fuel Pump
Bosch Motorsports BR540 Fuel Pump
Deatschwerks DW400 Fuel Pump
Deatschwerks DW440 Brushless Fuel Pump
Ti Automotive E5LM Brushless Fuel Pump
Includes:
PA Nylon Convoluted Tubing
Stainless Steel EFI Tube Clamps (x2)
Testing:
These tubes have been tested at Radium Engineering.
