Description
These fuel tubing kits are commonly used for plumbing in-tank submerged fuel pumps. The flexible convoluted tubing is manufactured from polyamide nylon and is therefore resistant to all fuel types including alcohol blends such as E85 and suitable for EFI fuel pressure.
There are 2 inner diameter sizes available including 5/16" (8mm) and 3/8" (10mm). When installing, run hot water over the ends first to loosen the material. This allows the tubing to fit snugly over the barb. Next, torque the reuseable stainless steel SAE J1508 clamps to 13.3 in-lbs. These clamps provide a 360 degree seal with rolled edges to protect the tubing.
RADIUM P/N: 20-0175, 20-0375, and 20-0775 compatible the following.
Walbro GSS341 255LPH Fuel Pump
Walbro GSS342 255LPH Fuel Pump
AEM 50-1000 Gas Fuel Pump
AEM 50-1200 E85 Fuel Pump
AEM 50-1220 E85 Fuel Pump
Aeromotive 340R 11141 Fuel Pump
Aeromotive 340R 11142 Fuel Pump
Deatschwerks 9-301-1000 Fuel Pump
Includes:

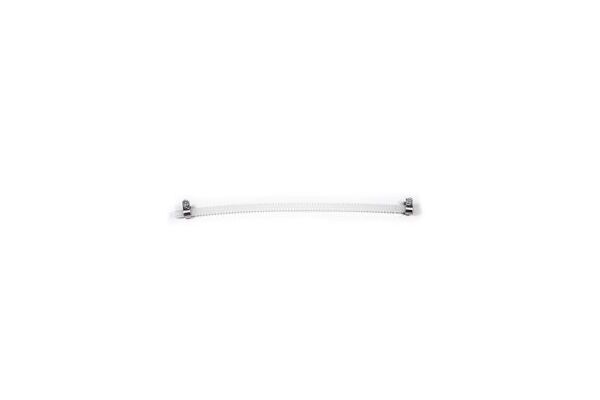

PA Nylon Convoluted Tubing
Stainless Steel EFI Tube Clamps (x2)
Testing:
These tubes have been tested at Radium Engineering.
More info
