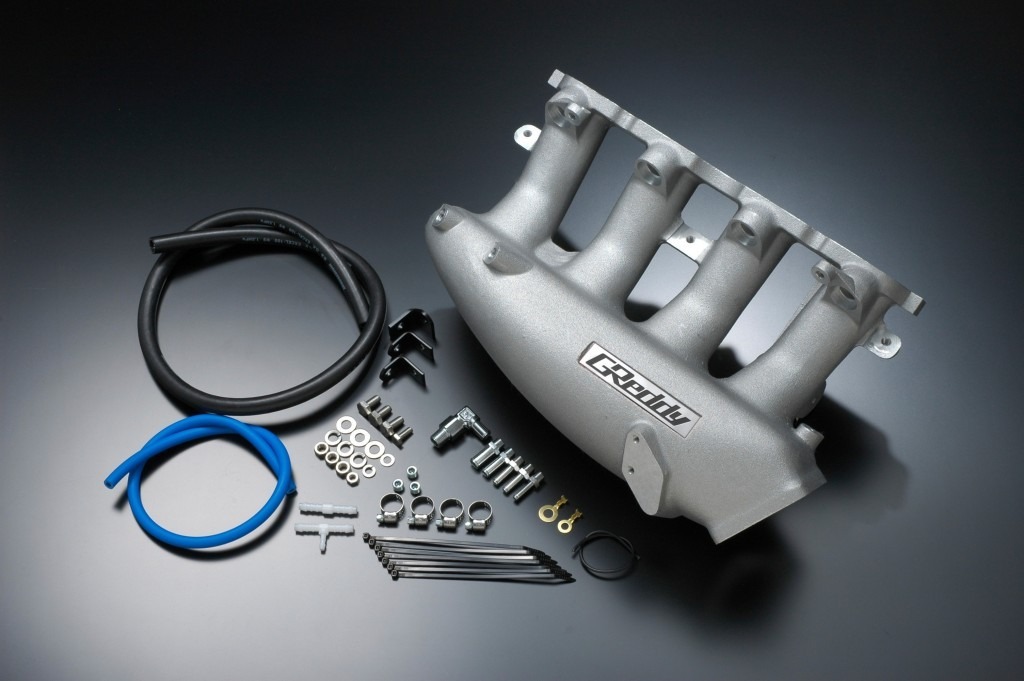

GReddy surge tank

Product Features

This large-capacity surge tank is specially designed to optimize the collector volume and intake port for the shape and displacement, and to maximize the performance required for the engine. The
basic design is based on the specifications for turbine replacement, and is designed in a shape that allows air to enter each cylinder evenly and smoothly.

specification

For genuine throttle

・Intake manifold and collector tank are one-piece aluminum castings that can be bolted on.
・Tank volume: Approximately 1.6 times larger than normal .
・Includes 1/8PT service holes for air pressure sensor and water temperature sensor.
・Compatible with OEM main injector (side feed type).
*Due to the larger tank capacity, it may be difficult to remove and install the transmission.

For Pulsar Throttle

・Intake manifold and collector tank are one-piece aluminum castings that can be bolted on.
・Tank volume: Approximately 1.6 times larger than normal .
・Includes 1/8PT service holes for air pressure sensor and water temperature sensor.
・Compatible with genuine main injector (side feed type).
・Genuine parts are required separately. (N15 Pulsar throttle, throttle sensor switch, throttle chamber gasket)
*Because the tank capacity is larger, it may be difficult to remove and install the transmission.

[Compatible models] Nissan Silvia

Compatible models: S14/S15
Engine model: SR20DET

For genuine throttle

TRUST CODE: 13522317
