SPAL Thermo Puller Fan - 12" - 12V - 1324 CFM - VA10-AP70/LL-61A
SKU: EF3572
More infoMake 4 interest-free payments of $75.00 fortnightly and receive your order now.
Description

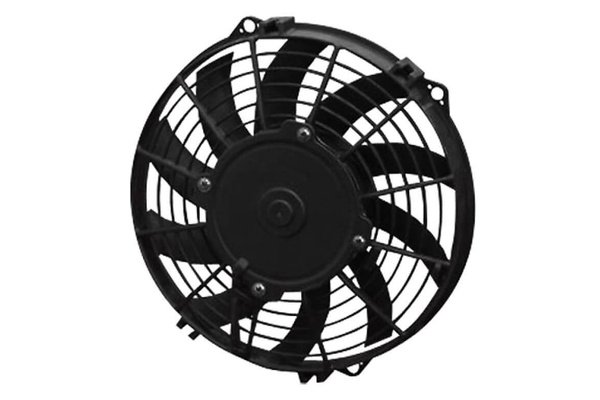

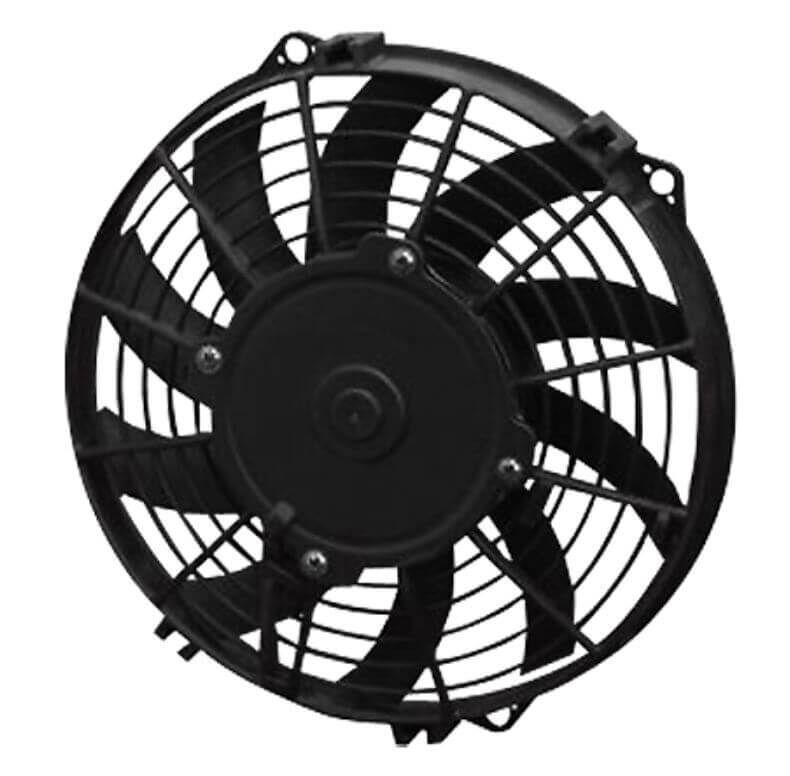

The VA10-AP70/LL-61A (EF3572) 12v 12" SPAL Puller Fan is a High Output Thermo Fan featuring a Finger Guard Shroud and a Skew (curved) Blade Design which can pull up to 1324cfm / 2250m3/h.
The EF3572 12" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers warranty.
| EF3572 12" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA10-AP70/LL-61A |
| U.S. Part # | 30102029 |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 12 inch (305mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 13.5 |
| CFM | 1324 |
| M3/H | 2250 |
| Spec. Sheet | View Specifications  |
| Warranty | View Warranty Info |
| EF3572 12" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 321mm / 12.64" |
| B | 336mm / 13.23" |
| C | 168mm / 6.61" |
| D | 292mm / 11.5" |
| E | 87mm / 3.43" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. SPAL fans are sold without extra mounting hardware. See the SPAL Fan Accessories section for these items.
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
